BrakesMaster cylinder components

MASTER CYLINDER COMPONENTS

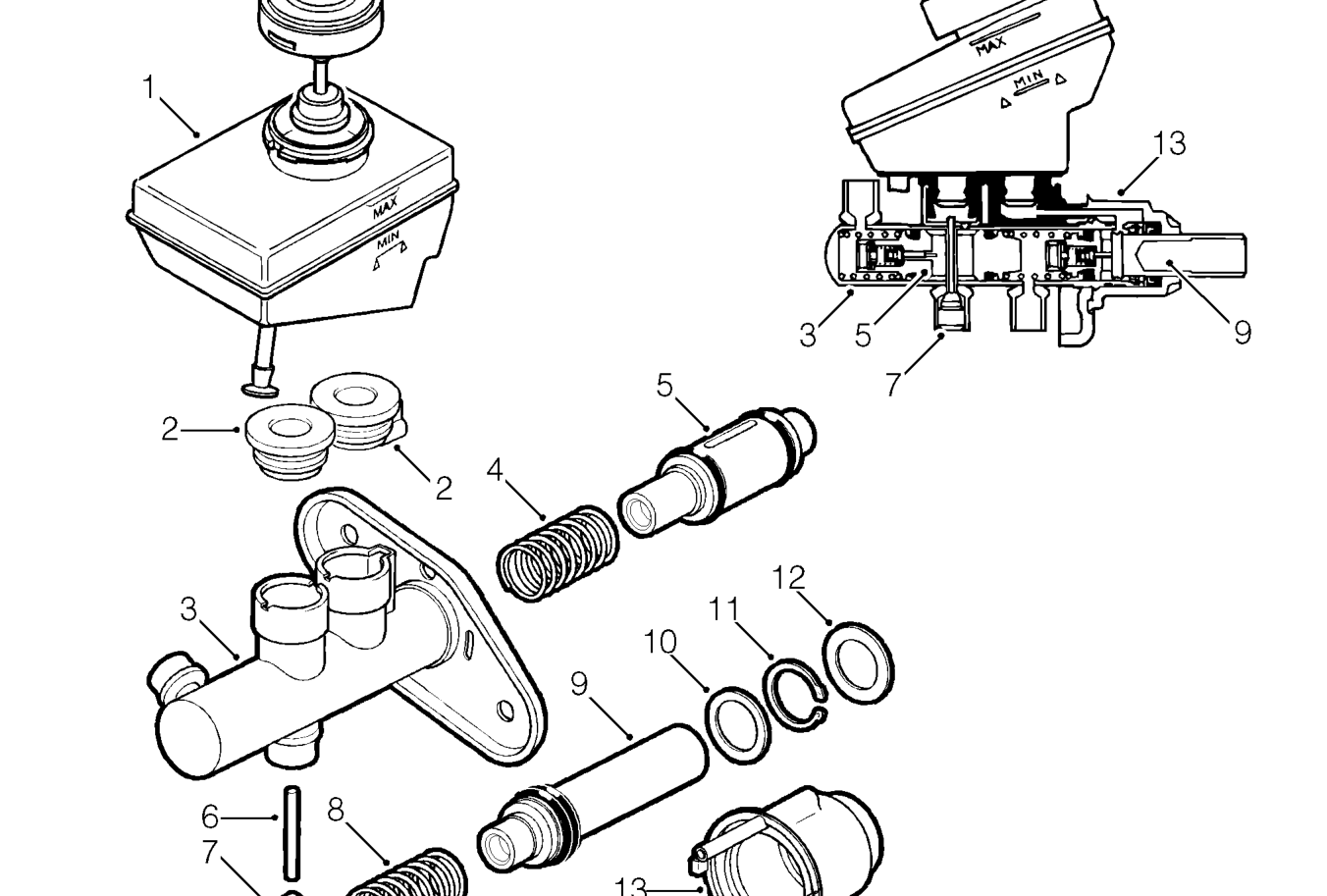

Master cylinder components
  1. Brake fluid reservoir
  2. Seals
  3. Cylinder body
  4. Spring
  5. Secondary plunger assembly
  6. Stop pin secondary plunger
  7. Pin securing screw
  8. Spring
  9. Primary plunger assembly
  10. Washer
  11. Circlip
  12. Flat washer
  13. Transfer housing
