Drive shaft inner gaiter

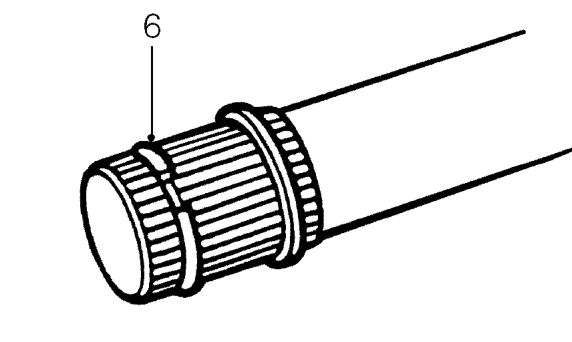

6. Remove circlip from shaft and discard.

Refit

1. Fit NEW circlip to shaft.
2. Position outer joint to shaft, use a screwdriver to press circlip into its groove and push joint fully onto shaft.
3. Smear grease around joint.
4. Position gaiter to joint and use a band-it thriftool to secure the 2 NEW clips.
5. Fit drive shaft. See this section.

DRIVE SHAFT INNER GAITER

Service repair no - 47.10.16

Remove

1. Remove drive shaft outer joint. See this section.

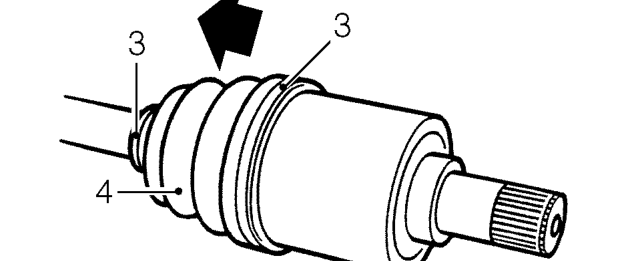

2. Slide outer gaiter off shaft.

3. Release both inner gaiter clips and discard.
4. Slide inner gaiter off shaft.
5. Inspect gaiter for signs of damage and renew if necessary.
6. Clean shaft and joint.

Refit

1. Smear grease around joint.
2. Position gaiter to inner joint and use a band-it thriftool to secure 2 NEW clips.
3. Fit outer gaiter to shaft.
4. Fit outer joint. See this section.
