Drive shaftsDynamic damper - drive shaft - RH

DYNAMIC DAMPER - DRIVE SHAFT - RH

Service repair no - 47.10.33

Remove

  1. Remove drive shaft outer gaiter. See this section.
  2. Clean shaft with emery cloth to remove rust.
  3. Lubricate shaft with liquid soap to aid damper removal.
  4. Slide damper from shaft.

Refit

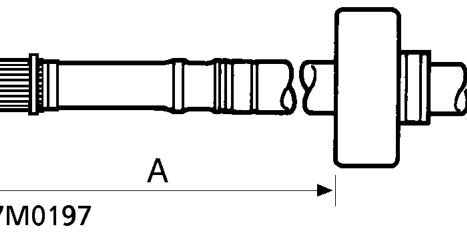

Dynamic damper - drive shaft - rh – Slide damper from shaft.
  1. Measure along shaft for fitted position of damper.
  2. Mark shaft for fitting position. Dimension ’A’ = 398.5 mm. ± 3 mm.
  3. Lubricate shaft for fitting of damper.
  4. Position damper to mark.
  5. Clean lubricant from shaft.
  6. Fit drive shaft outer gaiter. See this section.
