ALTERNATOR DRIVE BELT - NON AIR CONDITIONING - ADJUST

Service repair no - 86.10.05

Check

  1. Raise rear of vehicle.

WARNING: Support on safety stands.

  1. Remove road wheel(s).

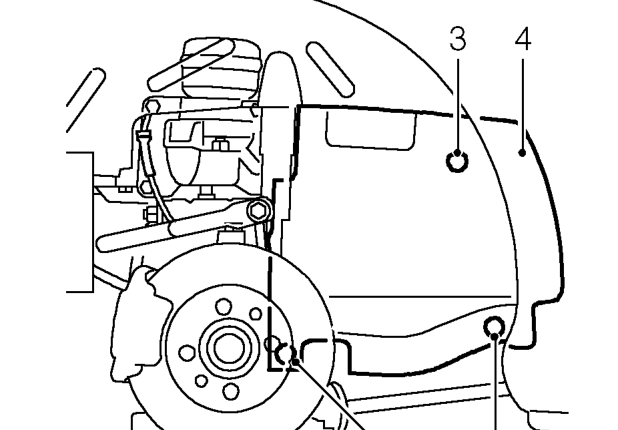

Alternator drive belt - non air conditioning - adjust – Remove road wheel(s).
  1. Remove 2 scrivets and Torx screw securing closing panel.
  2. Remove closing panel.
  3. Disconnect battery earth lead.
  4. Check condition of alternator drive belt. Renew a belt that shows signs of wear or splitting.

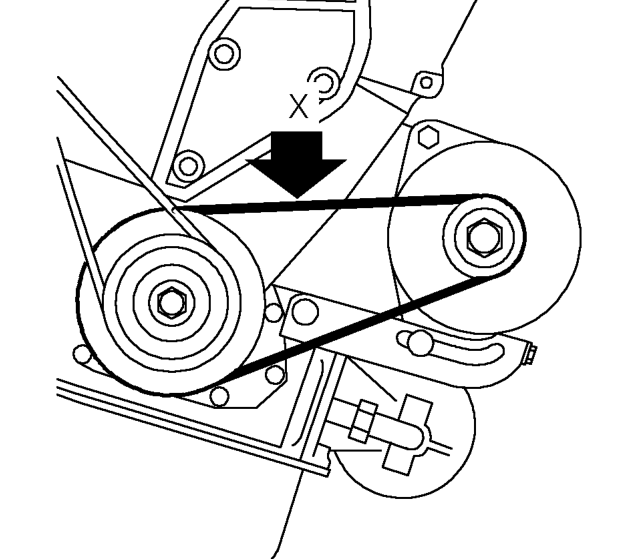

Alternator drive belt - non air conditioning - adjust – Check condition of alternator drive belt. Renew a belt that shows signs of wear or splitti
  1. Apply a force of 10 kg to alternator drive belt at position ’X’ and measure the deflection between crankshaft pulley and alternator pulley. Deflection must be 6 - 8 mm.
