Alternator drive belt - non air conditioning - adjust (Electrical) (page 2 of 2)

Adjust

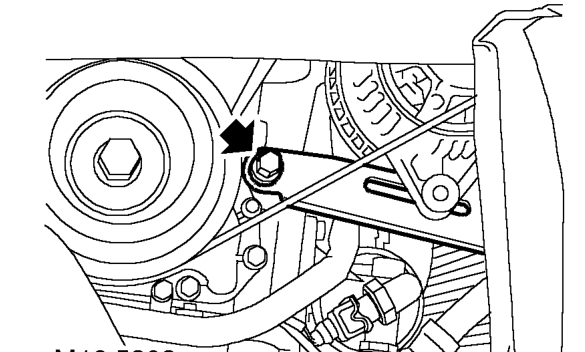

1. Loosen bolt securing alternator adjustment bracket.

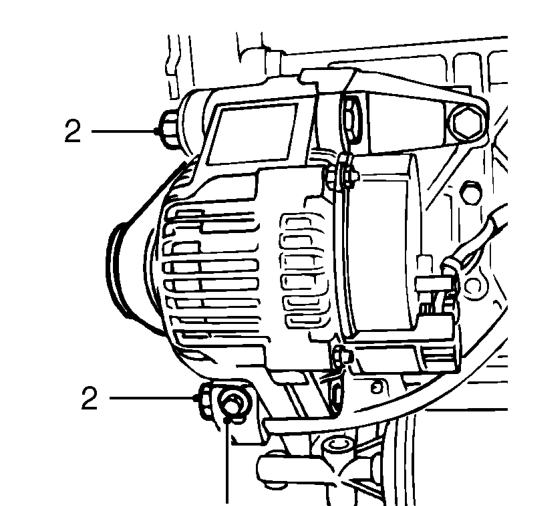

2. Loosen 2 alternator clamp bolts.

CAUTION: Ensure that bolts are loosened sufficiently for alternator to move freely.

3. Turn adjustment bolt in a clockwise direction to increase belt tension.

CAUTION: Do not apply excessive torque to adjusting bolt or damage to bolt will result. If bolt appears to be seized or is difficult to turn, apply suitable anti-seize lubricant to bolt.

4. Check belt tension and re-adjust if necessary.
5. Tighten clamp bolts to 45 Nm.
6. Tighten adjustment bracket bolt to 25 Nm.
7. Fit closing panel and secure scrivets.
8. Fit road wheel(s) and tighten nuts to correct torque. See INFORMATION, Torque wrench settings.
9. Remove stand(s) and lower vehicle.
10. Connect battery earth lead.
