ElectricalHeadlamps - adjust

HEADLAMPS - ADJUST

Service repair no - 86.40.17

Inspect

  1. Before adjustment, ensure tyre pressures and suspension trim heights are at the correct settings.
  2. Line up suitable beam setting equipment to headlamp.
  3. Switch on headlamps, and check alignment; 1.4% - Vertical 0.0% - Horizontal

Adjust

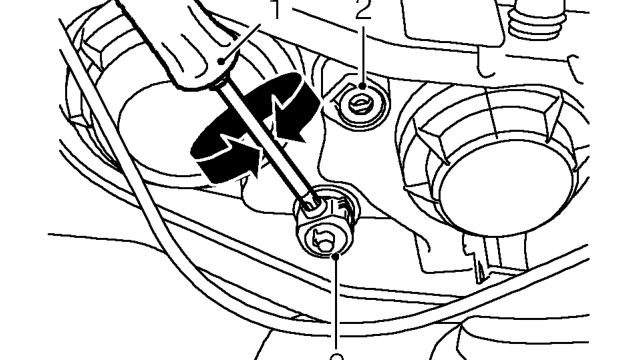

Headlamps - adjust – Switch on headlamps, and check alignment; 1.4% - Vertical 0.0% - Horizontal
  1. Using a 6 mm hexagonal drive, adjust headlamp accordingly to achieve correct alignment.
  2. Turn adjuster for vertical alignment.
  3. Turn adjuster for horizontal alignment.
  4. Repeat above procedure for 2nd headlamp.
  5. Switch off headlamps.
