ALTERNATOR - NON AIR CONDITIONING

Service repair no - 86.10.02

Remove

  1. Disconnect battery earth lead.
  2. Remove engine cover, See ENGINE, Repairs.
  3. Raise rear of vehicle.

WARNING: Support on safety stands.

  1. Remove road wheel(s).
Alternator - non air conditioning – Remove road wheel(s).

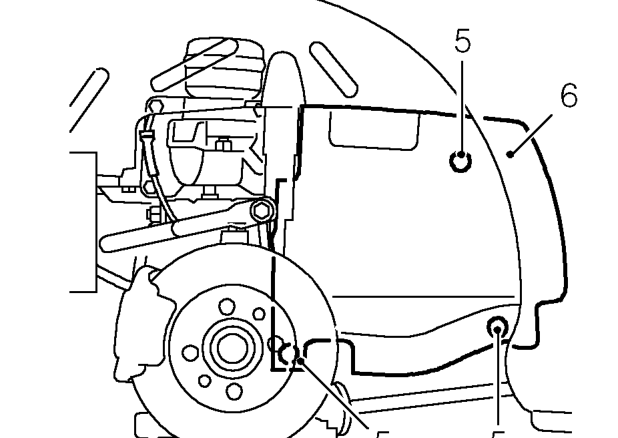

  1. Remove 2 scrivets and Torx screw securing closing panel.
  2. Remove closing panel.
  3. Remove alternator drive belt. See this section.
Alternator - non air conditioning – Remove alternator drive belt. See this section.

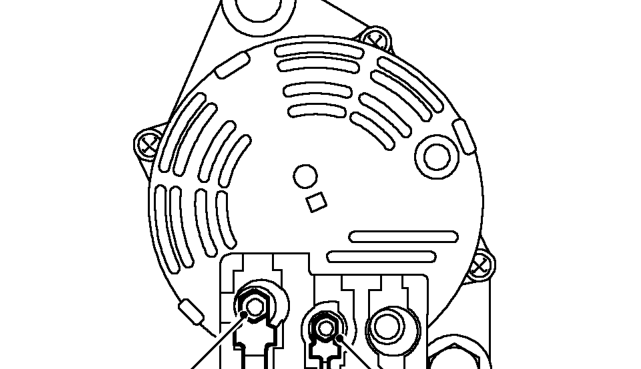

  1. Loosen 2 nuts securing cables to alternator.
  2. Disconnect cables from alternator.
Alternator - non air conditioning – Disconnect cables from alternator.

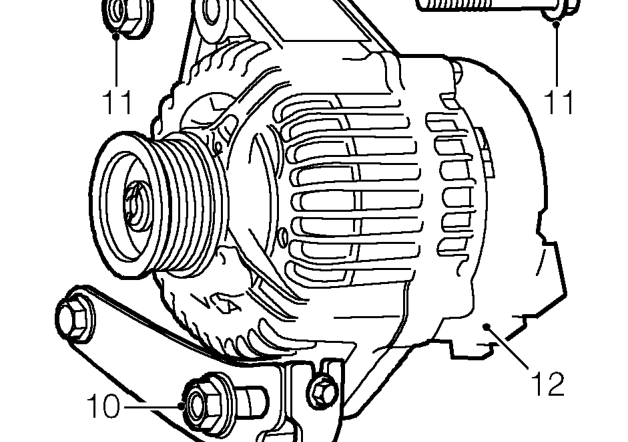

  1. Remove nut and bolt securing alternator to adjustment bracket.
  2. Remove nut and bolt securing alternator to engine.
  3. Remove alternator. Do not carry out further dismantling if component is removed for access only.
  4. Restraining the alternator shaft with an 8mm Allen key, remove nut securing pulley to alternator shaft using tool 18G 1653 .
  5. Remove pulley from alternator.
  6. Clean pulley and alternator shaft.
