Control unit - one touch window - 2000my on

Refit

1. Fit sill button, lock link rod and cable to latch assembly.
2. Position latch assembly to door and guide sill button through door aperture.
3. Switch ignition ON and fully lower door glass.
4. Switch ignition OFF.
5. Connect multiplugs to latch assembly.
6. Connect door release cable to remote door handle and secure to inner door panel clips.
7. Align exterior handle, link rod to latch assembly and secure with clip.

NOTE: A small amount of free-play should be evident between the exterior handle and latch. If necessary adjust the exterior handle, link rod trunnion.

8. Engage lock link rod to lock.
9. Fit Torx screws securing latch assembly to door and tighten to 5 Nm.
10. Secure plastic sheet to door.
11. Fit door trim casing. See BODY, Doors.

CONTROL UNIT - ONE TOUCH WINDOW - 2000MY ON

Service repair no - 86.25.37

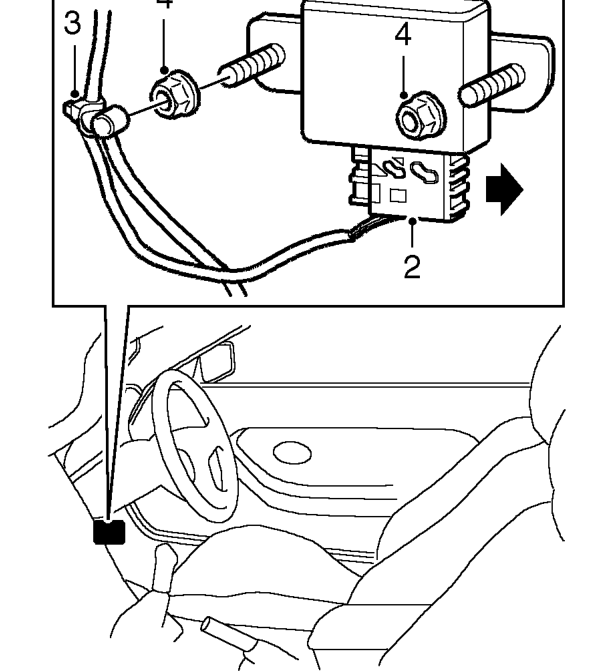

Remove

1. Release RH lower section of door seal and carpet to access control unit.
2. Release multiplug catch and disconnect multiplug.
3. Release harness clip from control unit retaining stud.
4. Remove 2 nuts securing control unit and remove control unit.

Refit

1. Position control unit, fit and tighten nuts.
2. Connect multiplug and secure catch.
3. Connect harness clip to retaining stud.
4. Reposition carpet and door seal.
