BONNET LAMP

Service repair no - 86.45.24

Remove

  1. Open bonnet.

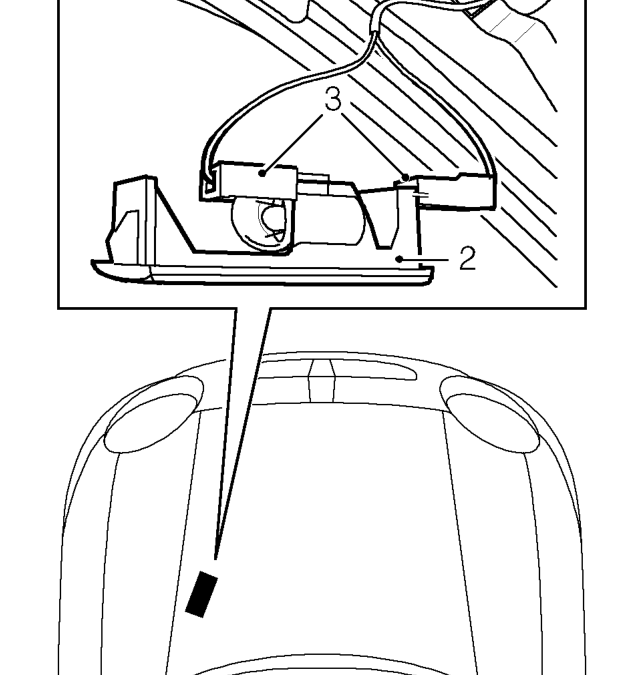

Bonnet lamp – Open bonnet.
  1. Release lamp from bonnet.
  2. Disconnect 2 Lucars.
  3. Remove lamp.

Refit

  1. Position lamp and connect Lucars.

CAUTION: Ensure black wire is connected to terminal closest to the bulb.

  1. Secure lamp in bonnet.

RADIO

Service repair no - 86.50.03

Remove

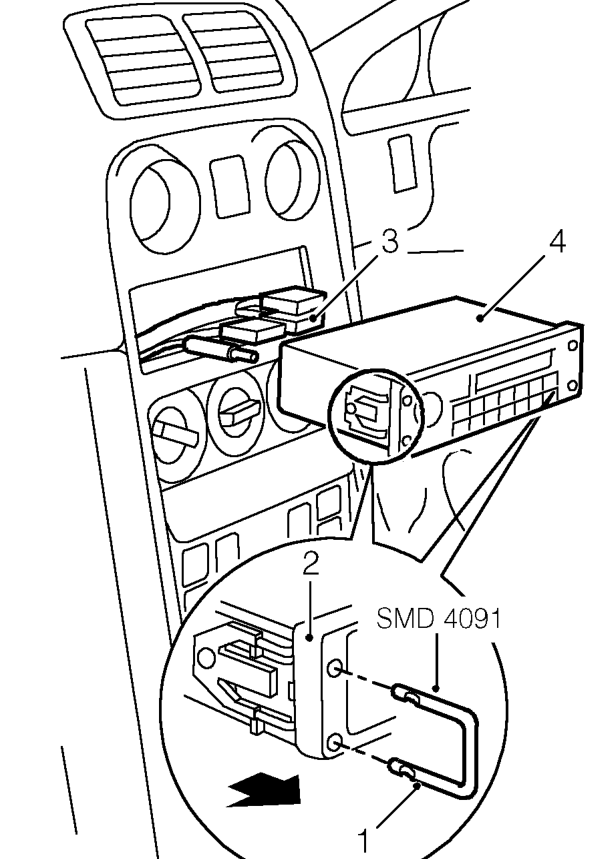

Radio – Service repair no - 86.50.03
  1. Fit radio removal tools SMD 4091.
  2. Pull tools to release radio from fascia.
  3. Disconnect multiplugs and aerial lead.
  4. Remove radio.
  5. Remove tools from radio.

Refit

  1. Position radio to aperture, connect multiplugs and aerial lead.
  2. Slide radio into fascia until retaining clips engage.
  3. Enter security code and check radio for correct operation.
