VOLUMETRIC SENSOR

Service repair no - 86.77.29

Remove

  1. Position both seats fully forward and position seat squab forward.
Volumetric sensor – Position both seats fully forward and position seat squab forward.

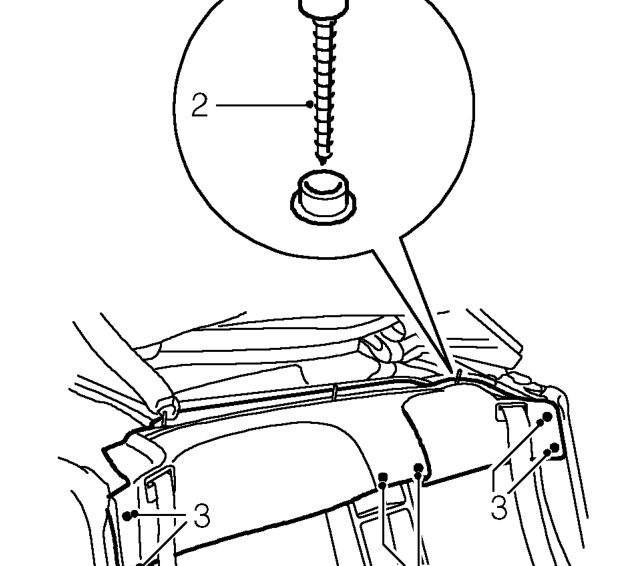

  1. Remove 3 screws securing rear bulkhead finisher to rear bulkhead and collect 3 studs.
  2. Release finisher from 6 clips and position aside.
Volumetric sensor – Release finisher from 6 clips and position aside.

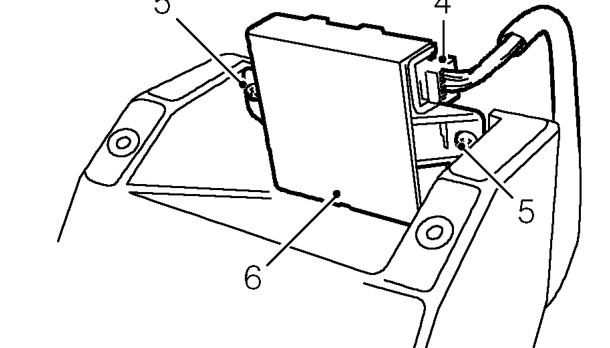

  1. Disconnect multiplug from sensor.
  2. Remove 2 screws securing sensor to rear console.
  3. Remove sensor.

Refit

  1. Fit sensor to console and secure with screws.
  2. Connect multiplug.
  3. Locate bulkhead finisher and engage clips.
  4. Fit studs and secure with screws.
  5. Return seats to original position.
