MG MGF Factory Workshop Manual (1995-2000)21 · Electrical
21 · Electrical

Hazard warning lamp switch

Make
MG
Model
MGF Factory Workshop Manual
Year
1995–2000
Section
Repairs › Hazard warning lamp switch
ElectricalHazard warning lamp switch
Diagram
  1. Release dimmer resistor from instrument cowl.
  2. Disconnect multiplug from dimmer.

Refit

  1. Connect multiplug and engage dimmer to cowl.
  2. Position fuse box cover and secure with clips.

HAZARD WARNING LAMP SWITCH

Service repair no - 86.65.50

Remove

  1. Release radio from console. See this section.

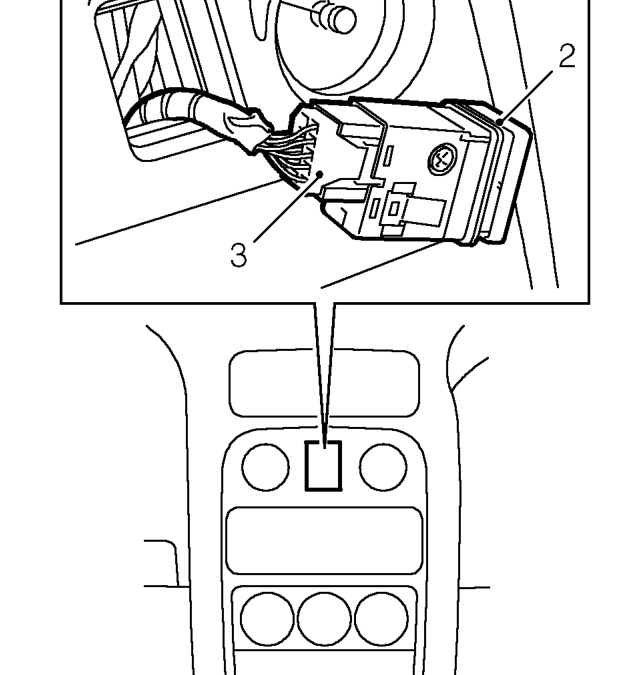

Hazard warning lamp switch – Release radio from console. See this section.
  1. Release hazard warning lamp switch from console.
  2. Disconnect multiplug from switch.

Refit

  1. Connect multiplug and engage switch to console.
  2. Secure radio to console. See this section.
