ALTERNATOR DRIVE BELT - WITH AIR CONDITIONING

Service repair no - 86.10.03/20

Remove

  1. Disconnect battery earth lead.
  2. Raise rear of vehicle.

WARNING: Support on safety stands.

  1. Remove road wheel(s).
Alternator drive belt - with air conditioning – Remove road wheel(s).

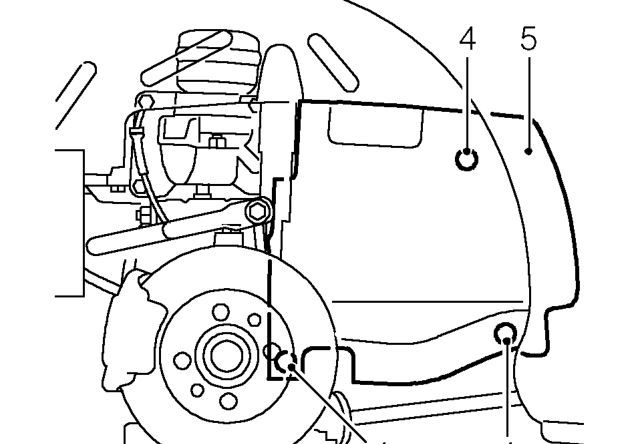

  1. Remove 2 scrivets and Torx screw securing closing panel.
  2. Remove closing panel.
Alternator drive belt - with air conditioning – Remove closing panel.

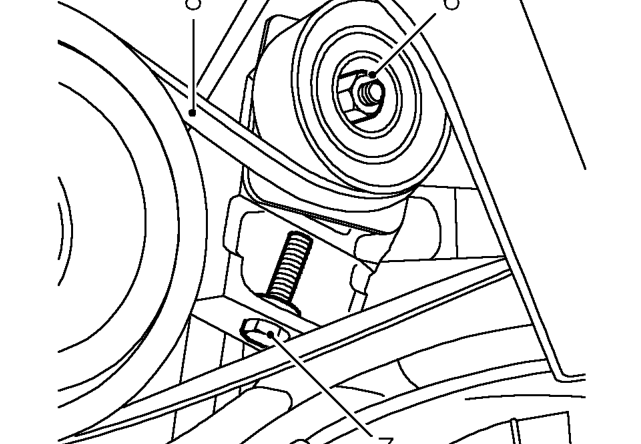

  1. Loosen drive belt tensioner pulley securing nut.
  2. Release drive belt tension by turning the tension adjusting bolt anti-clockwise.
  3. Release drive belt from alternator and compressor pulleys.
  4. Remove and discard drive belt.
