TAIL LAMP ASSEMBLY

Service repair no - 86.40.70

Remove

  1. Disconnect battery earth lead.

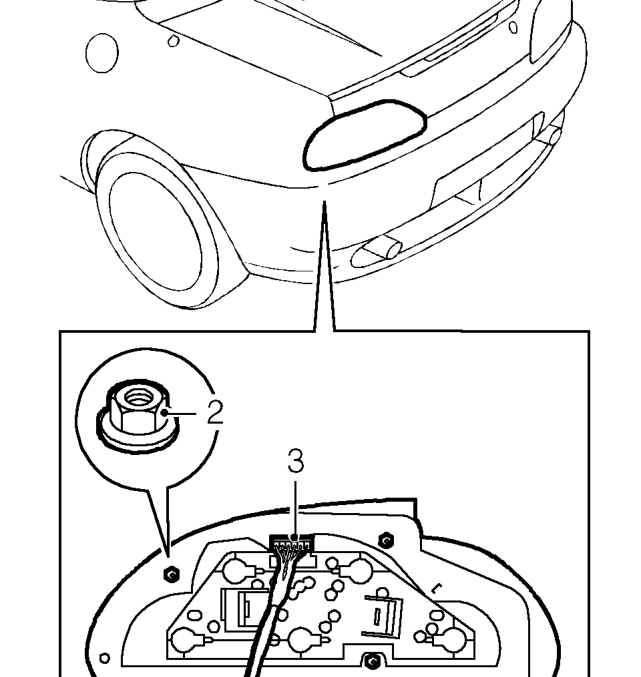

Tail lamp assembly – Disconnect battery earth lead.
  1. Remove 3 nuts securing tail lamp.
  2. Release tail lamp and disconnect multiplug.

Refit

  1. Connect multiplug to tail lamp.
  2. Fit tail lamp and tighten nuts to 2 Nm.
  3. Connect battery earth lead.

GLOVEBOX LAMP

Service repair no - 86.45.08

Remove

  1. Open glove box.

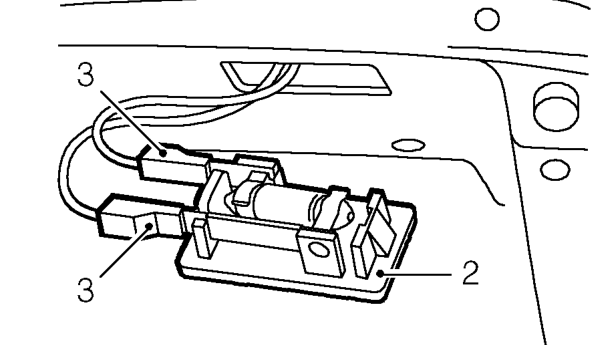

Glovebox lamp – Open glove box.
  1. Release lamp from glovebox
  2. Disconnect 2 Lucars from lamp.
  3. Remove lamp.

Refit

  1. Position lamp and connect Lucars.
  2. Secure lamp in glovebox.
