ELECTRIC WINDOW SWITCH - 2000MY ON

Service repair no - 86.25.19

Remove

  1. Remove console closing panel. See BODY, Interior trim components.

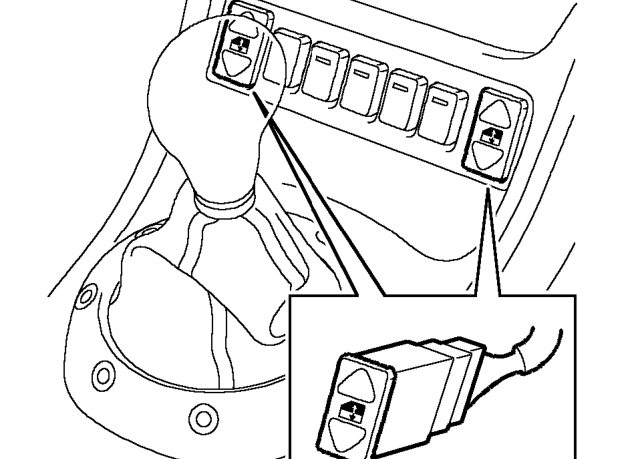

Electric window switch - 2000my on – Remove console closing panel. See BODY, Interior trim components.
  1. Release switch from centre console.
  2. Disconnect multiplug from switch.
  3. Remove switch.

Refit

  1. Connect multiplug to switch and fit switch to centre console.
  2. Fit console closing panel See BODY, Interior trim components.

CENTRAL DOOR LOCKING MOTOR AND LATCH

Service repair no - 86.26.08

Remove

  1. Remove door trim casing. See BODY, Doors.
  2. Switch the ignition ON and fully lower door glass.
  3. Switch ignition OFF.
  4. Carefully peel back corner of plastic sheet to allow access to door latch.

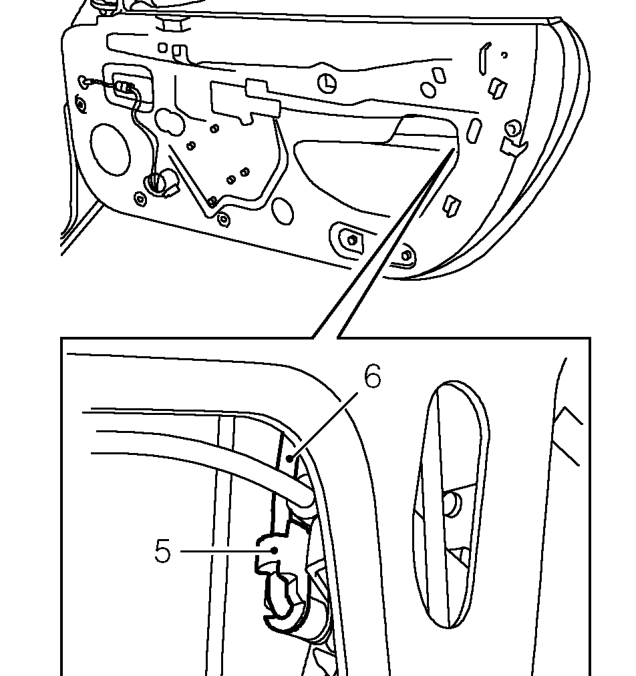

Central door locking motor and latch – Carefully peel back corner of plastic sheet to allow access to door latch.
  1. Release clip securing door handle link rod to latch assembly and position aside.
  2. Release lock link rod from lock.
