MG MGF Factory Workshop Manual (1995-2000)21 · Electrical
21 · Electrical

Electric window switch - 2000my on (page 2 of 2)

Make
MG
Model
MGF Factory Workshop Manual
Year
1995–2000
Section
Repairs
ElectricalElectric window switch - 2000my on · page 2 of 2
Diagram

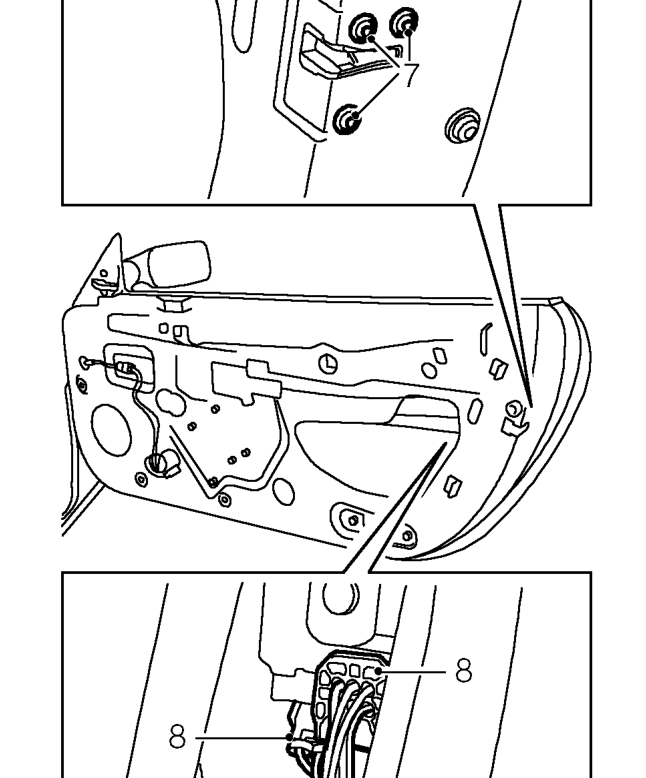

  1. Remove 3 Tx25 Torx screws securing latch assembly to door.
  2. Position latch assembly and disconnect 2 multiplugs.
Position latch assembly and disconnect 2 multiplugs.

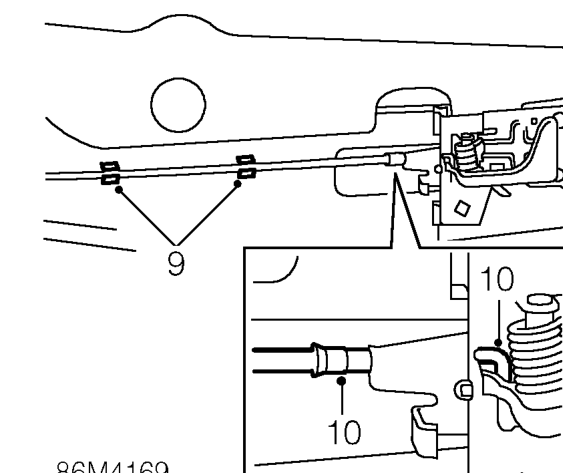

  1. Release cable from 2 inner door panel clips.
  2. Disconnect cable from remote door handle.
  3. Switch ignition ON and fully raise door glass.
  4. Switch ignition OFF.
Switch ignition OFF.

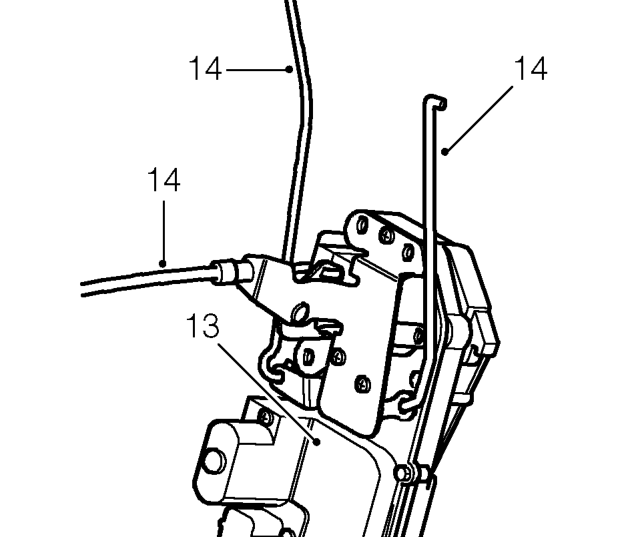

  1. Remove latch assembly from door.
  2. Remove sill button, lock link rod and cable from latch assembly.
