STEERING COLUMN SWITCH PACK

Service repair no - 86.65.55

Remove

  1. Remove rotary coupler. See RESTRAINT SYSTEMS, Repairs.

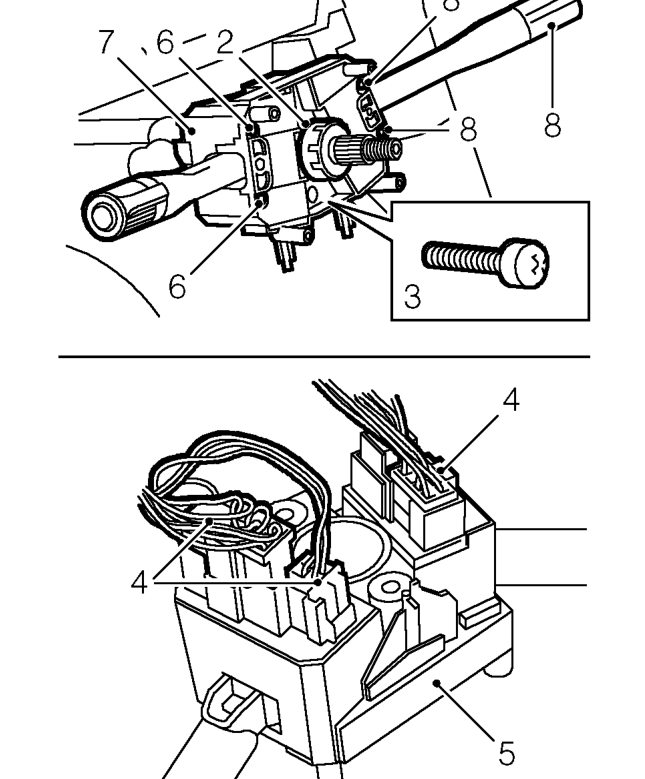

Steering column switch pack – Remove rotary coupler. See RESTRAINT SYSTEMS, Repairs.
  1. Remove direction indicator cancellation cam from column.
  2. Remove 2 screws securing switch pack to steering column.
  3. Release switch pack from column and disconnect 3 multiplugs.
  4. Remove switch pack.
  5. Remove 2 screws securing direction/ headlamp stalk to switch pack.
  6. Remove direction/headlamp stalk from switch pack.
  7. Remove 2 screws securing wash wipe stalk to switch pack.
  8. Remove wash wipe stalk from switch pack.

Refit

  1. Fit wash wipe stalk to switch pack and secure with screws.
  2. Fit indicator/headlamp stalk to switch pack and tighten screws.
  3. Position switch pack to steering column, connect 3 multiplugs and tighten screws.
  4. Fit direction indicator cancellation cam to steering column.
  5. Fit rotary coupler. See RESTRAINT SYSTEMS, Repairs.
