Alternator - with air conditioning

Refit

1. Fit pulley to alternator shaft.
2. Fit alternator pulley nut, hold shaft with an 8 mm Allen key and tighten nut to 25 Nm using tool 18G 1653 .
3. Position alternator to engine.
4. Fit nut and bolt securing alternator to engine, do not tighten at this stage.
5. Fit bolt securing alternator to adjustment bracket, but do not tighten.
6. Fit alternator drive belt. See this section.
7. Tighten bolt securing alternator to engine to 45 Nm.
8. Refit closing panel and secure with scrivets and Torx screw.
9. Fit road wheel(s) and tighten nuts to correct torque. See INFORMATION, Torque wrench settings.
10. Remove stand(s) and lower vehicle.
11. Connect alternator leads to terminals and tighten nuts.
12. Fit engine cover. See ENGINE, Repairs.
13. Connect battery earth lead.

ALTERNATOR - WITH AIR CONDITIONING

Service repair no - 86.10.02/20

Remove

1. Raise rear of vehicle.
2. Remove engine cover. See ENGINE, Repairs.
3. Remove alternator drive belt, See this section.

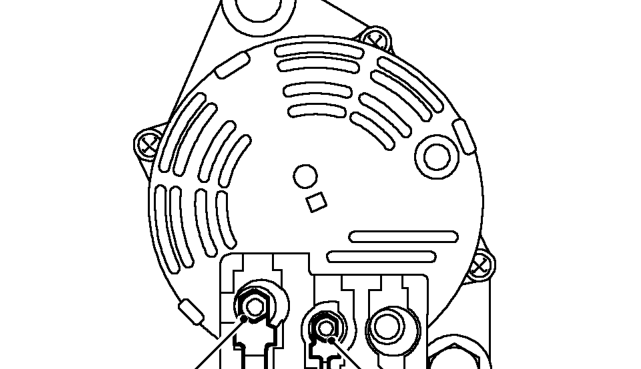

4. Remove 2 nuts securing connections to alternator and position aside.

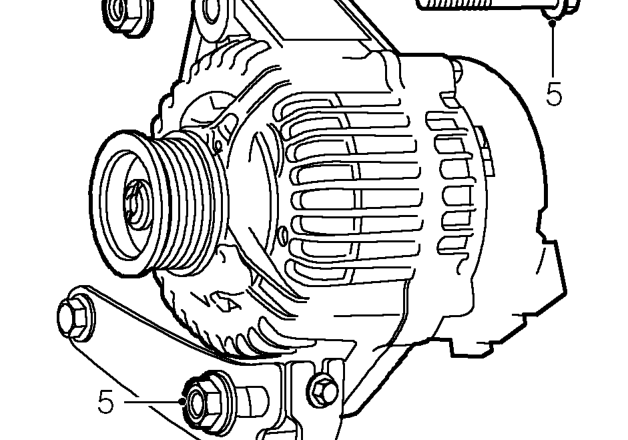

5. Remove upper and lower bolts securing alternator to mounting bracket.
