Anti-theft alarm ECU

Refit

1. Position subwoofer assembly and connect multiplug.
2. Fit and tighten 4 bolts securing subwoofer to body.
3. Align finisher to fixings and secure into position.
4. Position press studs and secure with screws.
5. Return seats to original position.

ANTI-THEFT ALARM ECU

Service repair no - 86.55.85

Remove

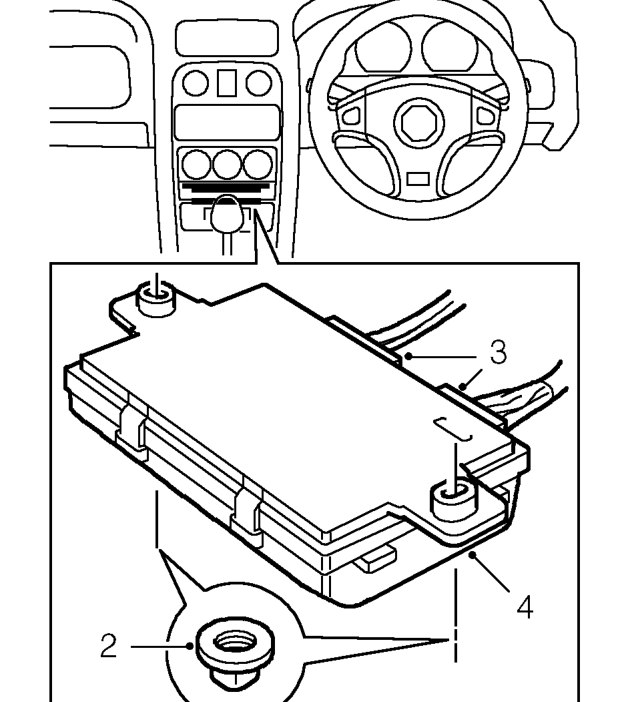

1. Remove 4 screws securing both closing panels to front console and position panels aside.

2. Remove 2 nuts securing alarm ECU to heater control unit.
3. Disconnect 2 multiplugs from alarm ECU.
4. Remove alarm ECU.

Refit

1. Connect multiplugs to alarm ECU.
2. Position alarm ECU to heater control unit and tighten nuts to 4 Nm.
3. Fit closing panels and secure with screws.
