Refit

1. Clean pulley ’V’s.
2. Fit NEW drive belt to crankshaft pulley and engage to alternator and compressor pulleys. Ensure grooves on drive belt and pulleys are correctly located.
3. Increase drive belt tension by turning the tension adjusting bolt clockwise.
4. Tighten drive belt tensioner pulley securing nut to 25 Nm.

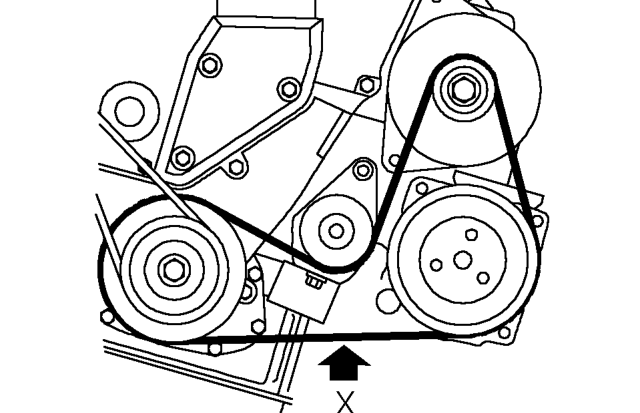

5. Apply a force of 10 kg to the drive belt at position ’X’ and measure the deflection between the crankshaft pulley and air conditioning compressor pulley. Deflection must be 9 - 10 mm.
6. Fit closing panel and secure with fixings.
7. Fit road wheel(s) and tighten nuts to correct torque. See INFORMATION, Torque wrench settings.
8. Remove stand(s) and lower vehicle.
9. Connect battery earth lead.

ELECTRIC WINDOW SWITCH - UP TO 2000MY

Service repair no - 86.25.19

Remove

1. Remove console closing panel. See BODY, Interior trim components.

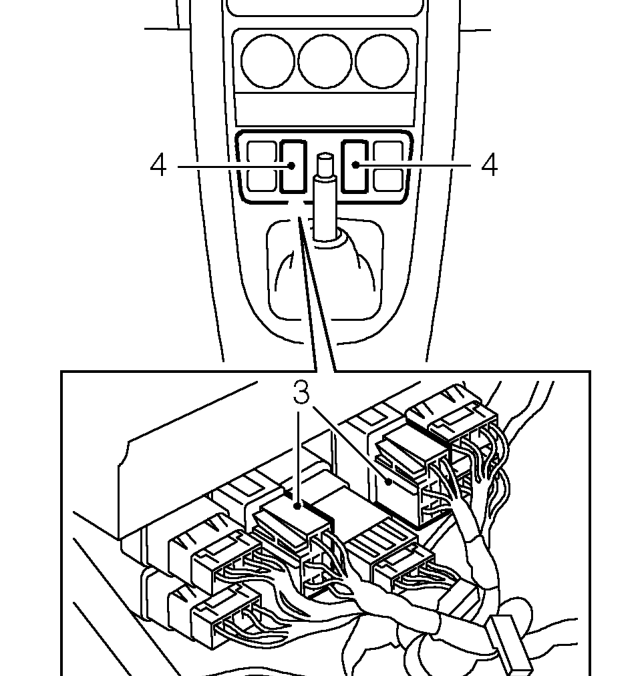

2. Release switch panel from centre console.

3. Disconnect multiplug from window switch.
4. Remove switch.

Refit

1. Connect multiplug and engage switch to panel.
2. Fit console closing panel. See BODY, Interior trim components.
