DIAGNOSTIC CONTROL UNIT (DCU)

Service repair no - 76.73.72

WARNING: See Precautions.

Remove

  1. Make the SRS system safe.See Precautions.
  2. Remove centre console panel. See BODY, Interior trim components.

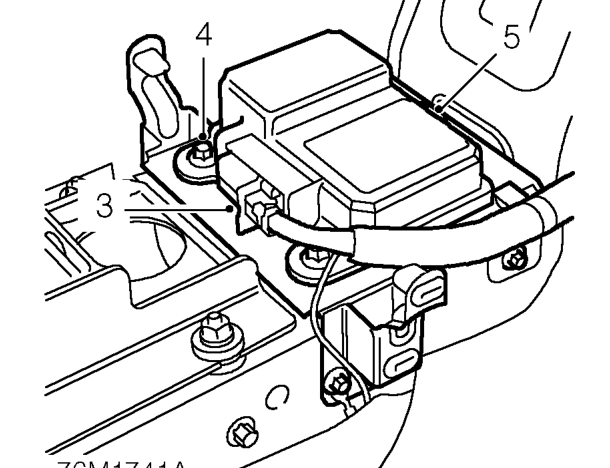

Diagnostic control unit (dcu) – Remove centre console panel. See BODY, Interior trim components.
  1. Disconnect multiplug from DCU.
  2. Remove 3 Torx bolts securing DCU to bracket.
  3. Remove DCU.

Refit

WARNING: Because the crash sensor is incorporated inside the DCU, it is imperative that bolts securing the DCU are tightened to their correct torque.

  1. Position DCU to support bracket, fit and tighten Torx bolts to 10 Nm.
  2. Connect multiplug.

CAUTION: Before connecting multiplug ensure that clip is in the open position, pointing away from the harness. Lock the connector into position by pushing clip towards harness.

  1. Fit centre console panel. See BODY, Interior trim components.
  2. Carry out system check using TestBook.
