Seat belt

Refit

1. Position harness to body.
2. Connect fuse satellite and multiplug to fusebox.
3. Connect multiplugs to seatbelt pre-tensioners.
4. Secure harness with clips.

CAUTION: Ensure that pre-tensioner leads pass through grommets in centre console area.

5. Position gear lever assembly to tunnel and tighten fixings to 9 Nm.

WARNING: Because the crash sensor is incorporated inside the DCU, it is imperative that all bolts securing the DCU are tightened to their correct torque.

6. Position DCU bracket to tunnel, fit harness earth lead and tighten fixings to 10 Nm.
7. Connect multiplug to steering column.

CAUTION: Before connecting DCU multiplug ensure that clip is in the open position, pointing away from the harness. Lock the connector into position by pushing clip towards the harness.

8. Connect multiplug to DCU and fit harness to clip.
9. Fit fascia. See BODY, Interior trim components.
10. Carry out system check using TestBook.

SEAT BELT

Service repair no - 76.73.13

Remove

1. Remove seat. See BODY, Interior trim components.
2. Remove Torx bolt securing seat belt strap to seat frame.

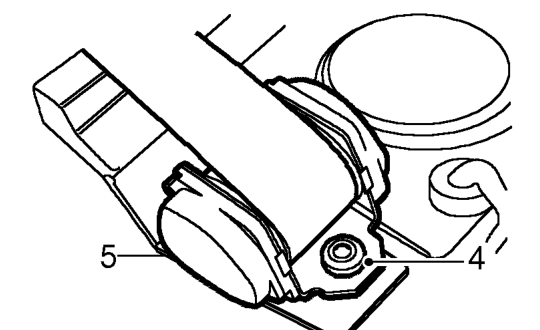

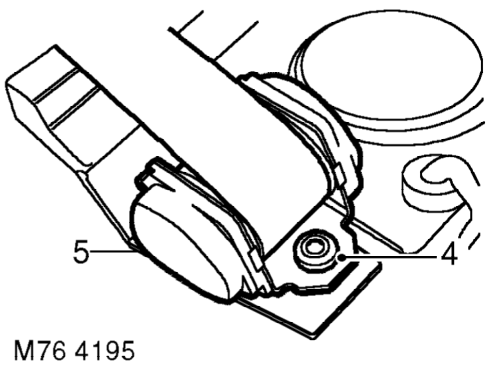

3. Remove hoodwell trim. See BODY, Interior trim components.

4. Remove Torx screw securing seat belt reel to body.
5. Remove seat belt.

Refit

1. Position seat belt reel to body, fit and tighten Torx screw to 35 Nm.
2. Fit hoodwell trim. See BODY, Interior trim components.
3. Position seat belt strap to seat, fit bolt and tighten to 30 Nm.
4. Fit seat. See BODY, Interior trim components.
