PASSENGER AIRBAG MODULE

Service repair no - 76.74.69

WARNING: See Precautions.

Remove

  1. Make the SRS system safe. See Precautions.
  2. Remove glovebox. See BODY, Interior trim components.

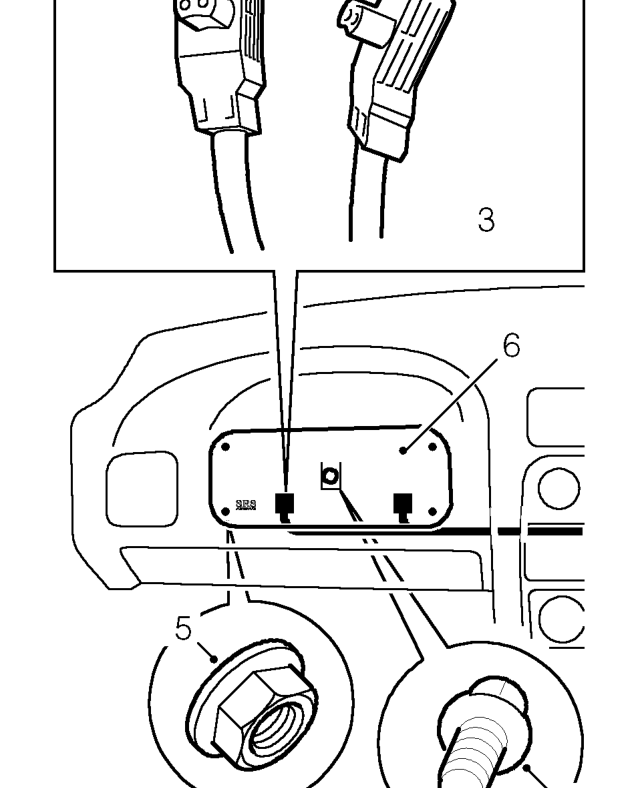

Passenger airbag module – Remove glovebox. See BODY, Interior trim components.
  1. Disconnect 2 multiplugs from airbag.
  2. Remove bolt securing bracket to fascia cross rail.
  3. Remove 4 nuts securing airbag to bracket.
  4. Remove airbag module.

CAUTION: Store the airbag module in accordance with the storage procedures outlined in the precautions part of this section.

NOTE: If the airbag module is to be replaced, the bar code must be recorded.

Refit

  1. Position module to fascia bracket and tighten nuts to 8 Nm.
  2. Tighten bolt securing bracket to fascia rail to 9 Nm.
  3. Connect multiplugs.
  4. Fit glovebox. See BODY, Interior trim components.
  5. Carry out system check using TestBook.
