Alternator drive belt - non air conditioning (page 2 of 2)

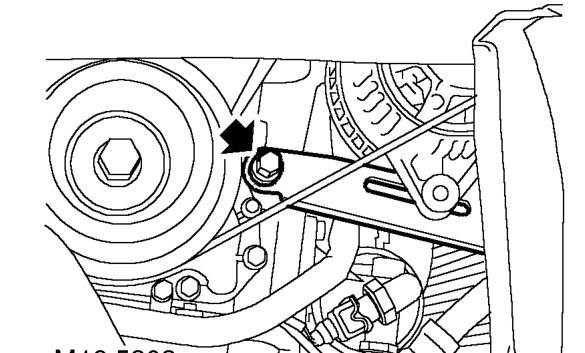

6. Loosen bolt securing alternator adjustment bracket.

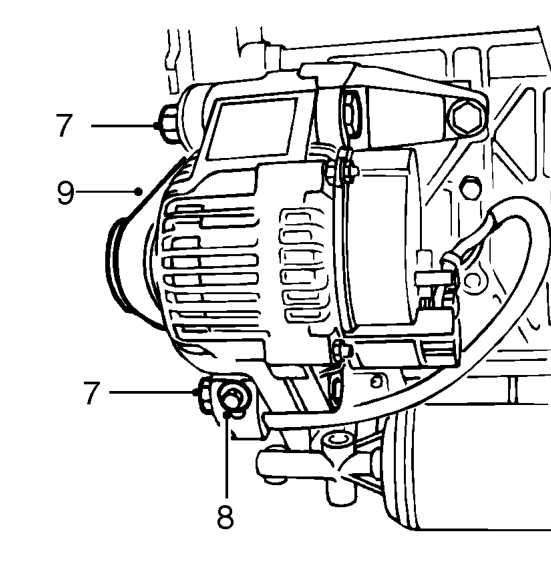

7. Loosen 2 alternator clamp bolts.

CAUTION: Ensure that bolts are loosened sufficiently for alternator to move freely.

8. Loosen adjusting bolt until there is sufficient free movement in belt to remove.

CAUTION: Do not apply excessive torque to adjusting bolt or damage to bolt will result. If bolt appears to be seized or is difficult to turn, apply suitable anti-seize lubricant to bolt.

9. Remove drive belt.

NOTE: If belt does not show signs of wear or damage, do not renew. If belt is to be re-used, mark the direction of rotation using chalk.

Refit

1. Fit drive belt to alternator and crankshaft pulleys.
2. Adjust alternator drive belt tension. See Adjustments.
3. Fit closing panel and secure with fixings.
4. Fit road wheel(s) and tighten nuts to correct torque. See INFORMATION, Torque wrench settings.
5. Remove stand(s) and lower vehicle.
6. Connect battery earth lead.
