Exhaust pipe - 2001 my on (Manifold & exhaust systems)

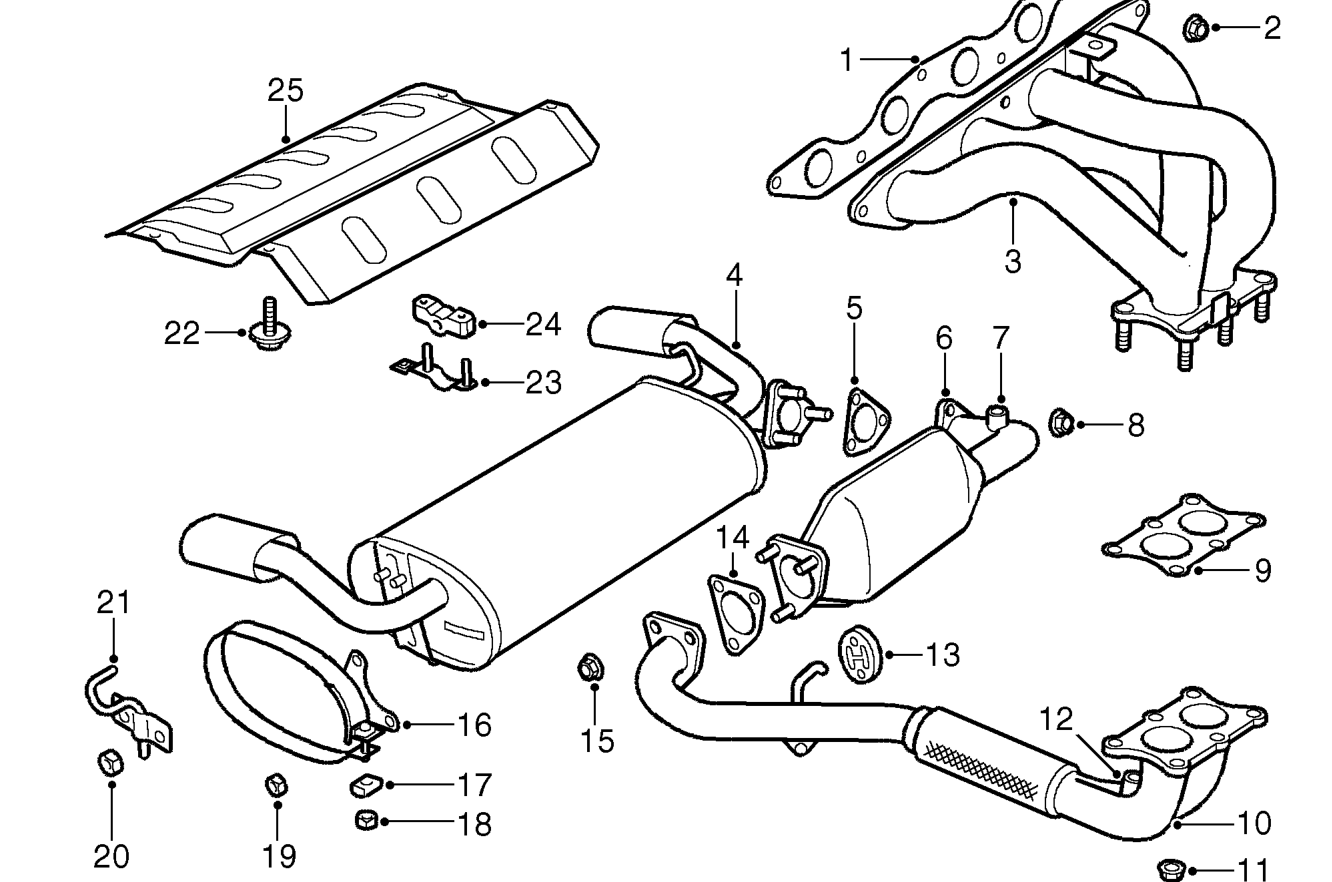

EXHAUST PIPE - 2001 MY ON

1. Gasket - exhaust manifold
2. Flange nut - exhaust manifold to cylinder head - 5 off
3. Exhaust manifold
4. Exhaust silencer
5. Gasket - silencer to catalytic converter
6. Catalytic converter
7. Downstream HO₂S mounting boss
8. Flange nut - catalytic converter to silencer - 3 off
9. Gasket - manifold to front pipe
10. Exhaust front pipe
11. Flange nut - manifold to front pipe - 6 off
12. Upstream HO₂S mounting boss
13. Mounting rubber
14. Gasket - catalytic converter to front pipe
15. Flange nut - catalytic converter to front pipe - 3 off
16. Clamp bracket - silencer
17. Washer - clamp bracket
18. Nut - clamp bracket
19. Nut - clamp bracket attachment
20. Nut - silencer mounting bracket - 2 off
21. Mounting bracket - silencer
22. Bolt - heat shield - 4 off
23. Mounting bracket - 2 off
24. Mounting rubber - 2 off
25. Heat shield - silencer
