INLET MANIFOLD - VVC

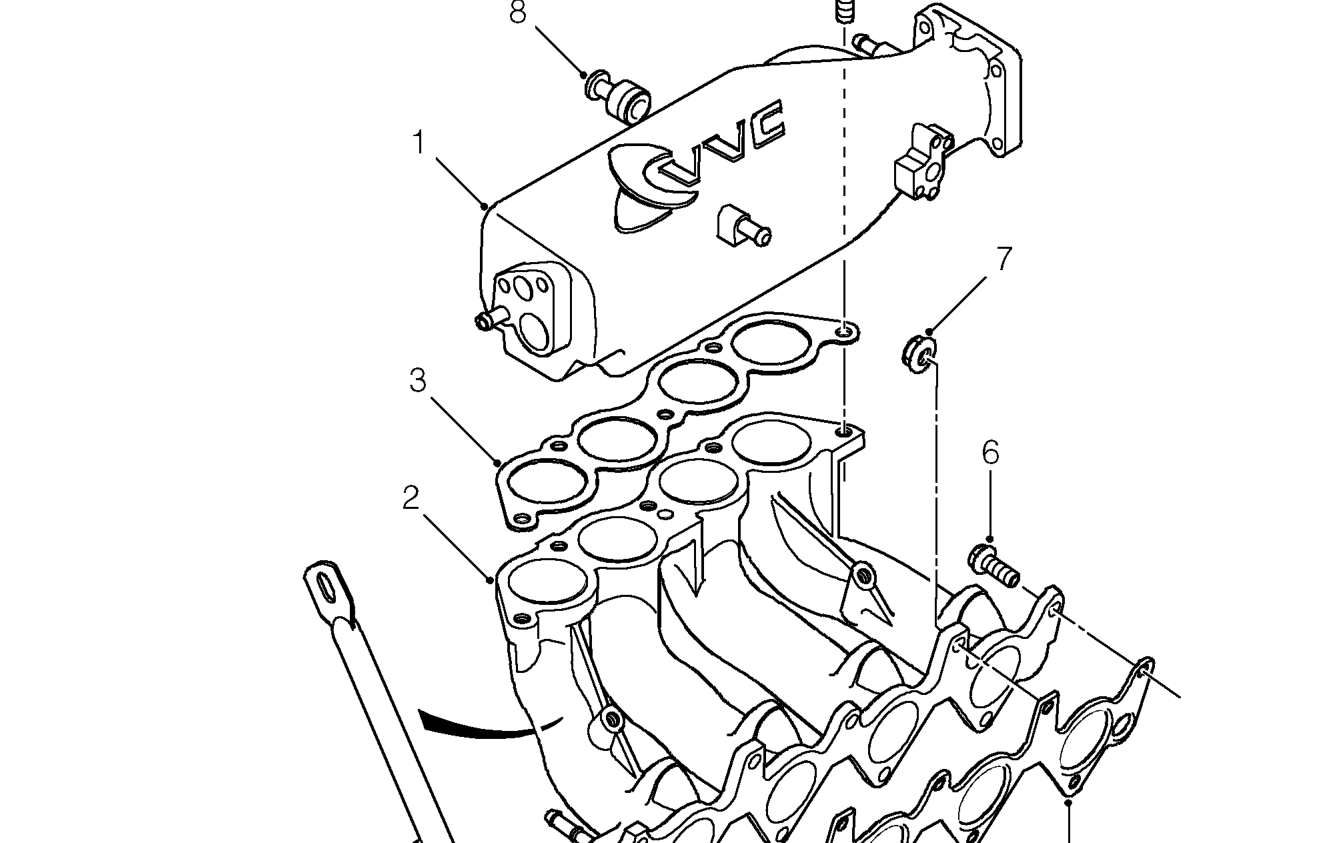

Inlet manifold - vvc

Up to 2000MY shown

  1. Inlet manifold chamber
  2. Inlet manifold
  3. Gasket - manifold chamber to inlet manifold
  4. Gasket - inlet manifold to cylinder head
  5. Bolt - manifold chamber to inlet manifold

The alloy inlet manifold assembly comprises a manifold chamber bolted to the inlet manifold with a gasket interposed between the two components. The throttle housing is bolted to the manifold chamber and sealed with an ’O’ ring.

  1. Bolt - inlet manifold to cylinder head
  2. Nut - inlet manifold to cylinder head
  3. Vacuum pipe union
  4. Inlet manifold support stay

The manifold chamber incorporates the manifold absolute pressure sensor and brake servo vacuum hose union. The air intake temperature sensor is incorporated in the inlet manifold. The inlet manifold is attached to the cylinder head and sealed with a gasket. A strut between the inlet manifold and the cylinder block supports the inlet manifold assembly.
