Workshop Manuals Factory service & repair MG
MG MGF Factory Workshop Manual (1995-2000)08 · Manifold & exhaust systems
08 · Engine

Exhaust pipe - up to 2001 my (Manifold & exhaust systems)

Make
MG
Model
MGF Factory Workshop Manual
Year
1995–2000
Section
Description and operation › Exhaust pipe - up to 2001 my
Manifold & exhaust systemsExhaust pipe - up to 2001 my

EXHAUST PIPE - UP TO 2001 MY

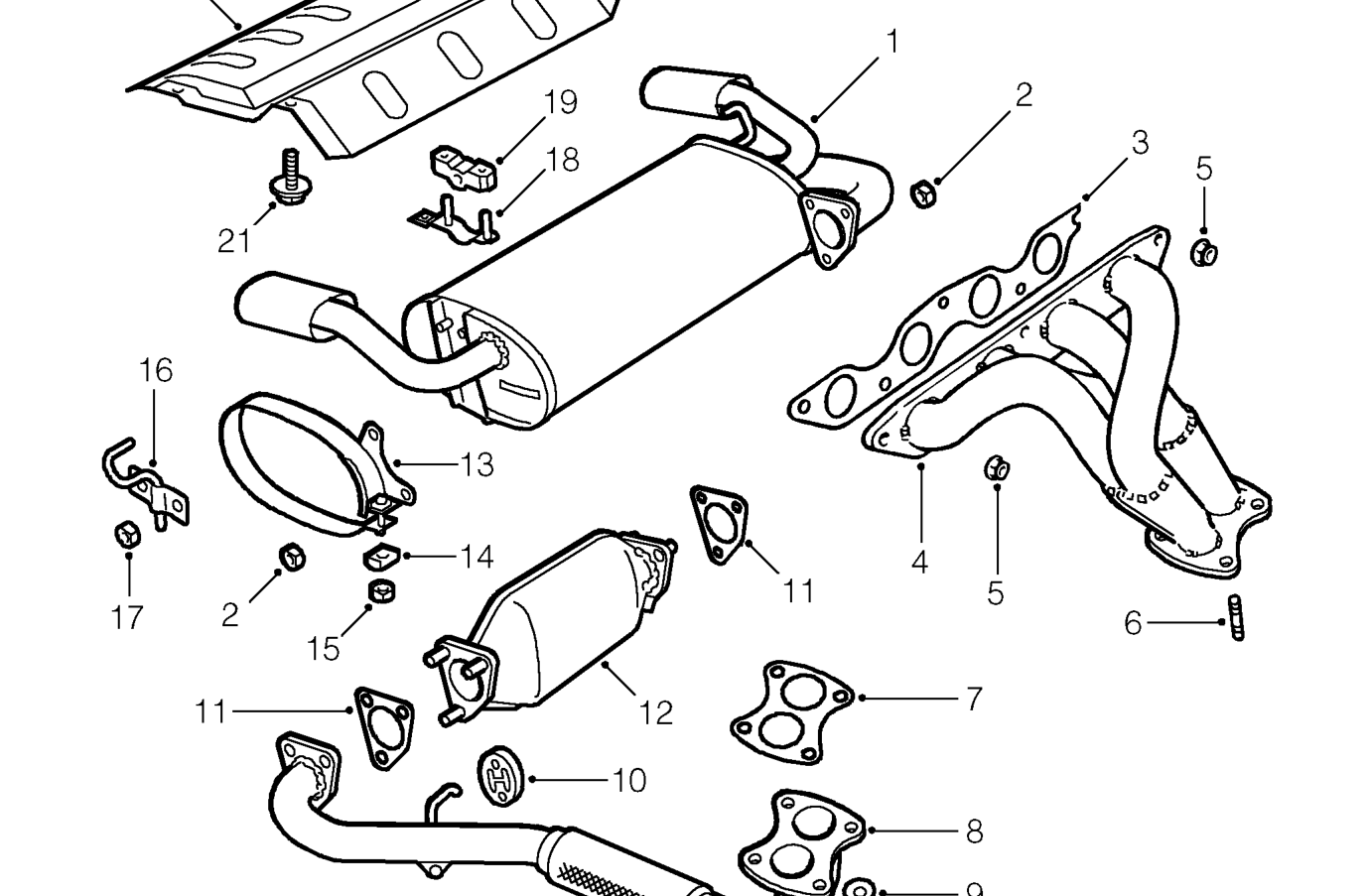

Exhaust pipe - up to 2001 my
  1. Exhaust silencer
  2. Flange nut - 6 off
  3. Gasket - exhaust manifold
  4. Exhaust manifold
  5. Flange nuts - 5 off
  6. Stud - 4 off
  7. Gasket - manifold to front pipe
  8. Exhaust front pipe
  9. Flange nut - 4 off
  10. Mounting rubber
  11. Gasket - pipe flange - 2 off
  12. Catalytic converter
  13. Clamp bracket - rear silencer
  14. Washer - clamp bracket
  15. Nut - clamp bracket
  16. Mounting bracket - silencer
  17. Nut - mounting bracket - 2 off
  18. Mounting bracket - 2 off
  19. Mounting rubber - 2 off
  20. Heat shield - silencer
  21. Bolt M6 - heat shield - 4 off
