Workshop Manuals Factory service & repair MG
MG MGF Factory Workshop Manual (1995-2000)20 · Wipers & washers
20 · Electrical

Washer jet

Make
MG
Model
MGF Factory Workshop Manual
Year
1995–2000
Section
Repairs › Washer jet
Wipers & washersWasher jet

WASHER JET

Service repair no - 84.10.08

Remove

  1. Open bonnet.

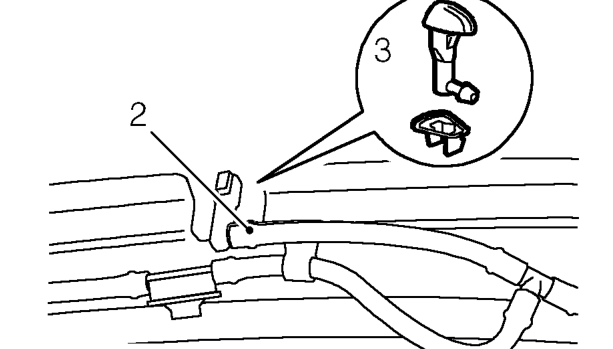

Washer jet – Open bonnet.
  1. Disconnect hose from washer jet.
  2. Remove jet and collect seat.

Refit

  1. Position seat and engage jet to bonnet.
  2. Connect hose.
  3. Adjust jets.

WASHER PUMP

Service repair no - 84.10.21

Remove

  1. Remove reservoir and pump. See this section.

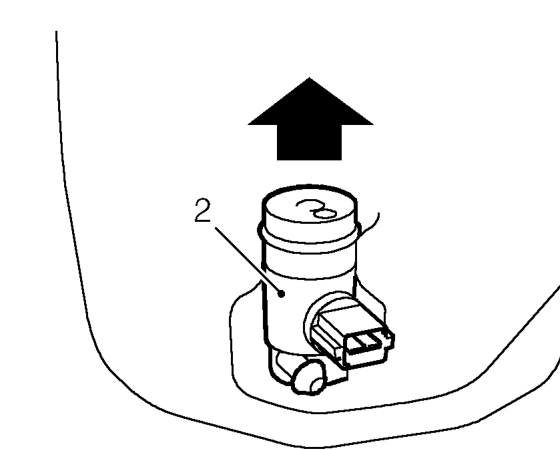

Washer pump – Remove reservoir and pump. See this section.
  1. Remove pump from reservoir.

Refit

  1. Fit pump to reservoir.
  2. Fit reservoir and pump assembly. See this section.
