WIPER ARM

Service repair no - 84.15.02

Remove

  1. Open bonnet.

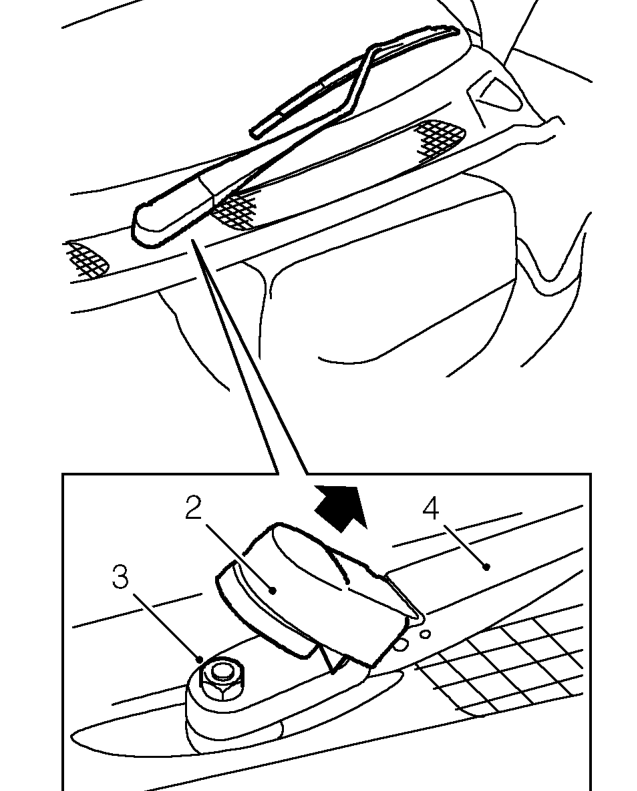

Wiper arm – Open bonnet.
  1. Remove cover from wiper arm.
  2. Remove nut securing wiper arm to spindle.
  3. Remove wiper arm.

Refit

  1. Fit wiper arm to spindle and align blade to screen.
  2. Fit and tighten nut to 20 Nm.
  3. Fit cover.

WIPER MOTOR AND LINKAGE

Service repair no - 84.15.11

Remove

  1. Remove air intake panel. See HEATING & VENTILATION, Repairs.
  2. Remove underbonnet closing panel. See BODY, Exterior fittings.

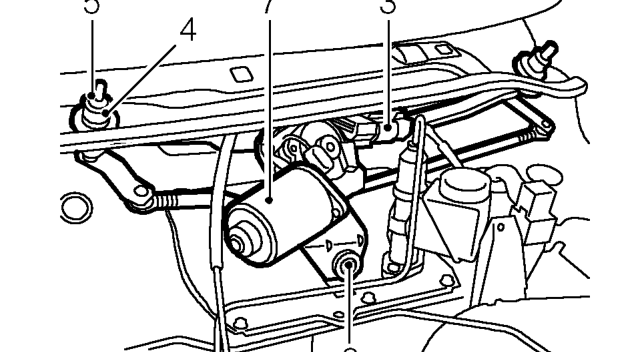

Wiper motor and linkage – Remove underbonnet closing panel. See BODY, Exterior fittings.
  1. Disconnect multiplug from motor.
  2. Remove cover from spindle.
  3. Remove 2 nuts securing spindles to scuttle.
  4. Remove bolt securing motor to pedal box.
  5. Remove motor and linkage assembly.

Refit

  1. Position motor and linkage assembly to scuttle.

NOTE: Ensure spindle seals are correctly positioned to scuttle apertures.

  1. Tighten fixings to 10 Nm.
  2. Fit spindle cover.
  3. Connect multiplug.
  4. Fit air intake panel. See HEATING & VENTILATION, Repairs.
  5. Fit underbonnet closing panel. See BODY, Exterior fittings.
