CONTROLS - HEATER - 2000MY ON

Service repair no - 80.10.02

Remove

  1. Remove centre console. See BODY, Interior trim components.
Controls - heater - 2000my on – Remove centre console. See BODY, Interior trim components.

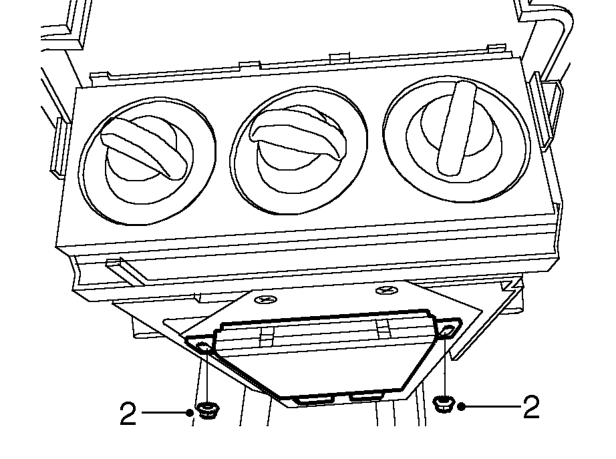

  1. Remove 2 nuts securing alarm ECU, release ECU and position aside.
Controls - heater - 2000my on – Remove 2 nuts securing alarm ECU, release ECU and position aside.

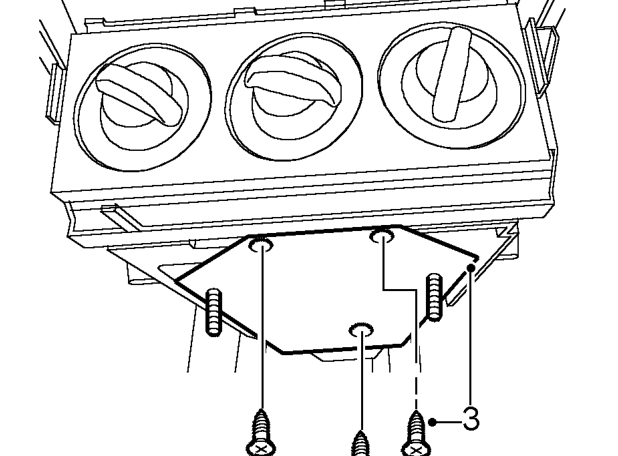

  1. Remove 3 screws securing alarm ECU support plate and remove support plate.
Controls - heater - 2000my on – Remove 3 screws securing alarm ECU support plate and remove support plate.

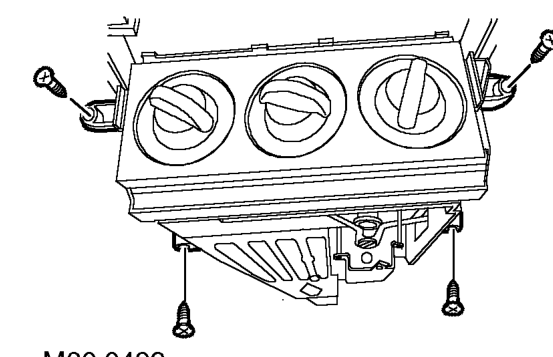

  1. Remove 4 screws securing heater controls and release controls from support bracket.
Controls - heater - 2000my on – Remove 4 screws securing heater controls and release controls from support bracket.

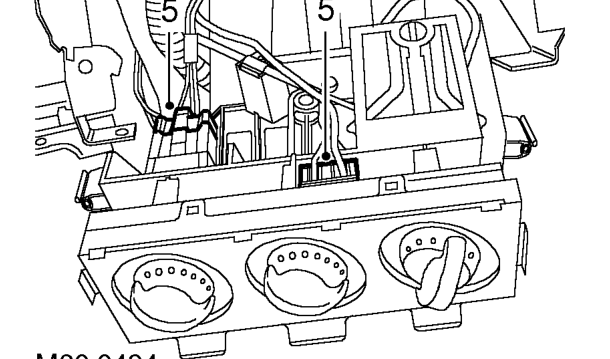

  1. Disconnect heater control multiplugs.
