HEATER

Service repair no - 80.20.01

WARNING: See RESTRAINT SYSTEMS, Precautions.

Remove

  1. Make the SRS system safe See RESTRAINT SYSTEMS, Precautions.
  2. Remove fascia. See BODY, Interior trim components.

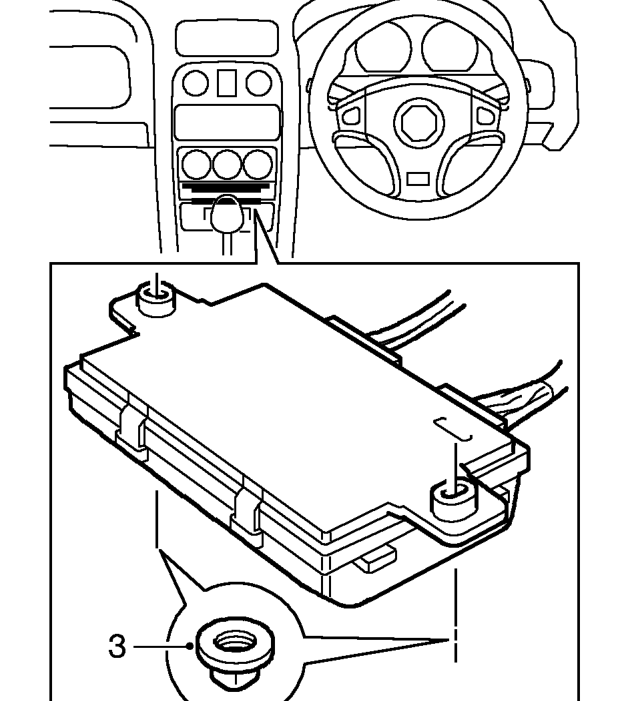

Heater – Remove fascia. See BODY, Interior trim components.
  1. Remove 2 nuts securing anti-theft alarm ECU to heater control unit, position ECU aside.
  2. Drain cooling system. See COOLING SYSTEM, Adjustments.

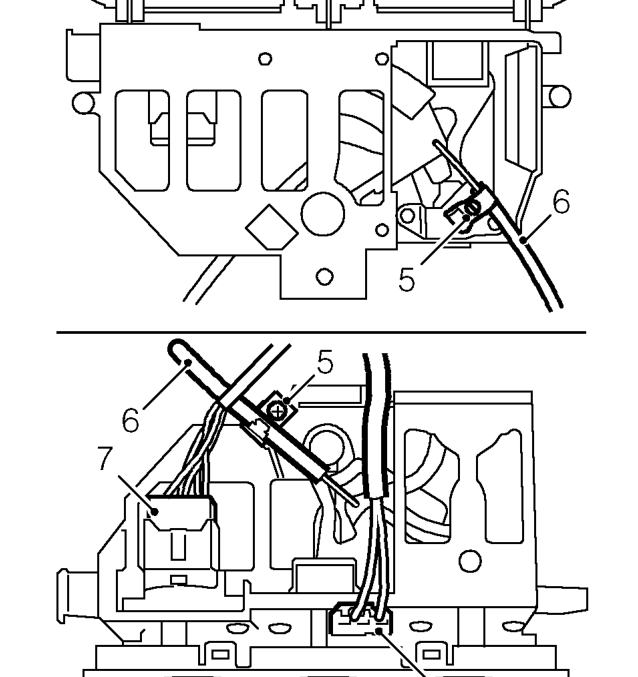

Heater – Drain cooling system. See COOLING SYSTEM, Adjustments.
  1. Remove 2 screws retaining outer cables to control unit.
  2. Release cables from control unit.
  3. Disconnect 2 multiplugs and remove control unit.
  4. Remove 2 screen ducts from heater.
