Workshop Manuals Factory service & repair MG
MG MGF Factory Workshop Manual (1995-2000)18 · Heating & ventilation
18 · Heating & A/C

Heater (page 2 of 3)

Make
MG
Model
MGF Factory Workshop Manual
Year
1995–2000
Section
Repairs
Heating & ventilationHeater · page 2 of 3
Diagram

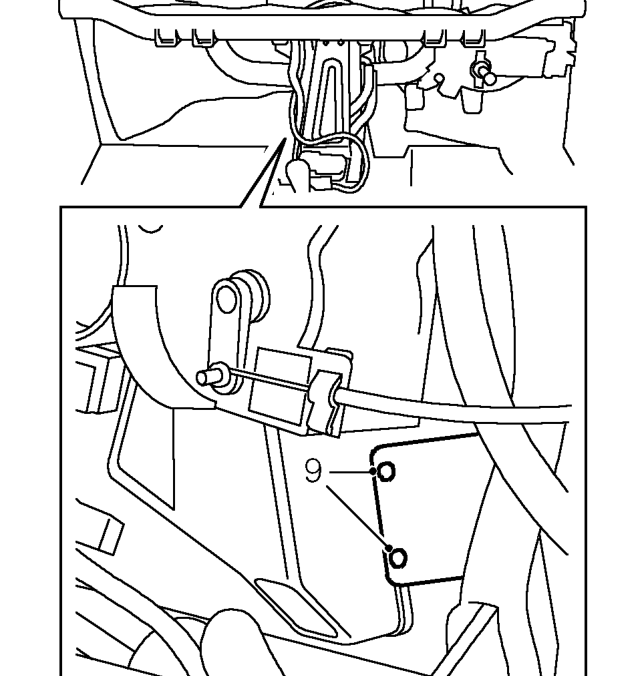

  1. Remove 2 screws securing valve to heater casing.
  2. Position container beneath heater to catch spillage.
Position container beneath heater to catch spillage.

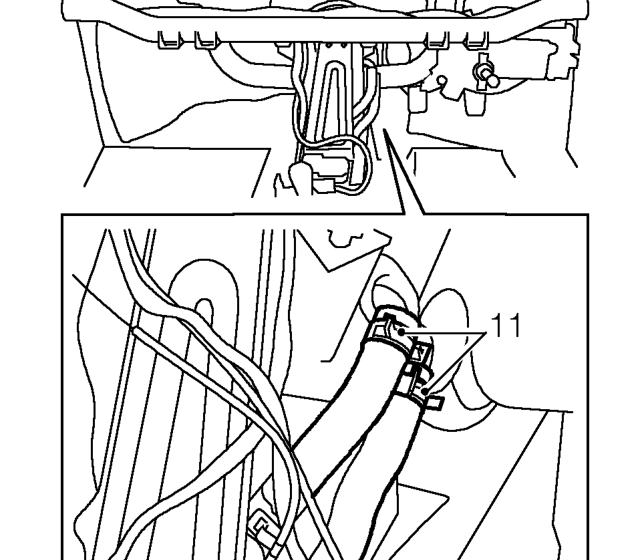

  1. Release clips and disconnect both hoses from heater matrix. Allow matrix to drain.
Release clips and disconnect both hoses from heater matrix. Allow matrix to drain.

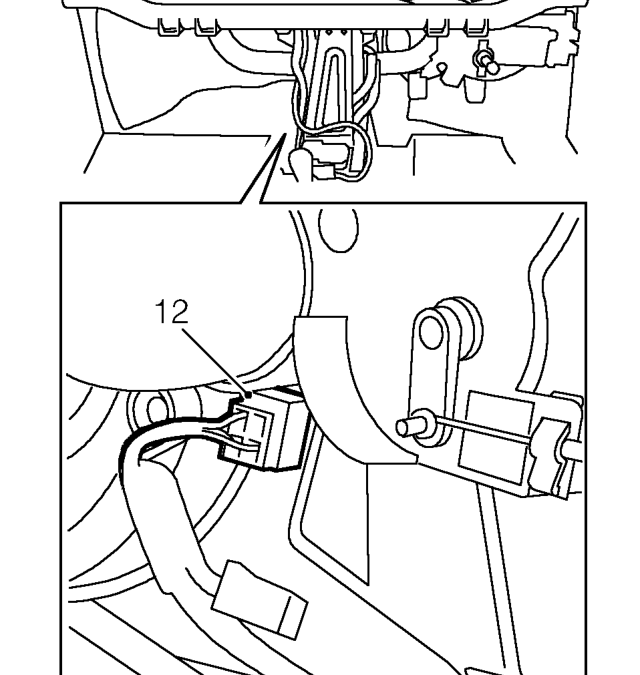

  1. Disconnect multiplug from heater blower.
