Cable - water valve control - up to 2000my

Refit

1. Position control assembly and connect inner cables.
2. Secure outer cables in clips, do not clamp screws at this stage.
3. Connect control multiplugs.
4. Align controls to support bracket. Fit and tighten screws.
5. Turn distribution control fully anti-clockwise to face vent position.
6. Position air distribution lever fully forward.
7. Align outer cable to abutment and secure clamp screw.
8. Turn heater control to ’cold’ and heater valve lever fully clockwise.
9. Secure outer cable clamp screw.
10. Position alarm ECU support plate, fit and tighten screws.
11. Position alarm ECU, fit and tighten nuts.
12. Fit centre console. See BODY, Interior trim components.

CABLE - WATER VALVE CONTROL - UP TO 2000MY

Service repair no - 80.10.07

Remove

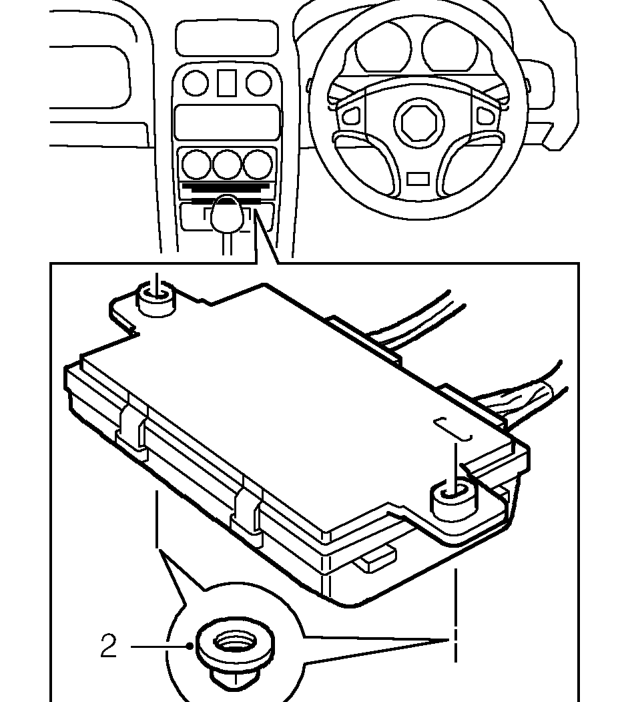

1. Remove front console. See BODY, Interior trim components.

2. Remove 2 nuts securing anti-theft alarm ECU to heater control unit, position ECU aside.
