Heating & ventilationRecirculation servo motor

RECIRCULATION SERVO MOTOR

Service repair no - 80.20.10

Remove

  1. Remove glovebox. See BODY, Interior trim components.

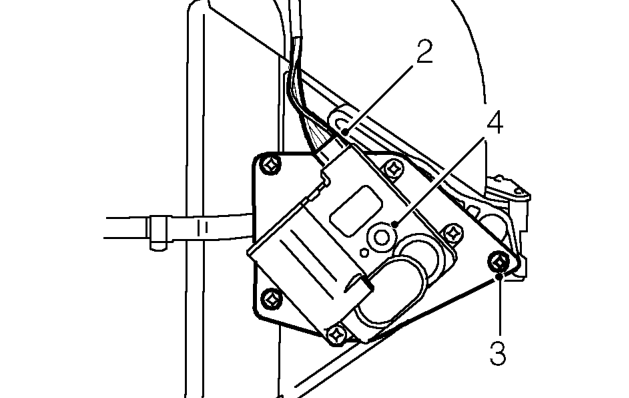

Recirculation servo motor – Remove glovebox. See BODY, Interior trim components.
  1. Disconnect multiplug from servo motor.
  2. Remove 3 screws securing servo motor to evaporator casing.
  3. Remove servo motor.

Refit

  1. Position servo motor and engage output crank to recirculation flap lever.
  2. Secure servo motor with screws.
  3. Connect multiplug.
  4. Fit glovebox. See BODY, Interior trim components.

HEATER BLOWER

Service repair no - 80.20.12

Remove

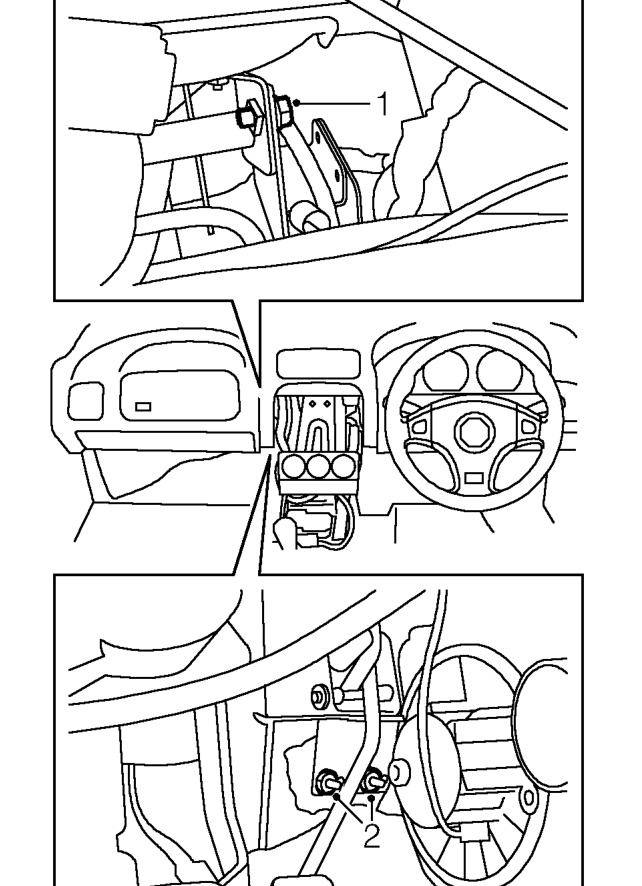

Heater blower – Service repair no - 80.20.12
  1. Remove bolt securing throttle pedal bracket to pedal box.
  2. Remove 2 nuts securing throttle pedal bracket to bulkhead and position throttle pedal assembly aside.
  3. Remove heater duct.
