Heating & ventilationHeater - with air conditioning · page 4 of 4

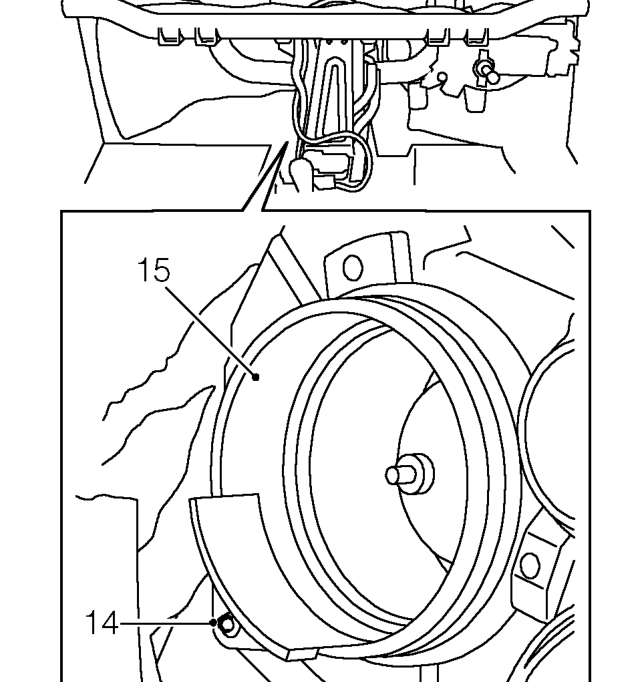

Diagram
  1. Remove nut securing heater unit to bulkhead.
  2. Remove heater unit.

Refit

  1. Position heater to mountings.
  2. Tighten all fixings to 10 Nm.
  3. Connect multiplug to heater blower.
  4. Connect hoses to heater matrix and secure with clips.
  5. Position valve and secure with screws.
  6. Fit screen duct.
  7. Connect multiplugs to control unit.
  8. Position control cables and connect to control unit.
  9. Align cable outers to control unit and tighten clamp screws.

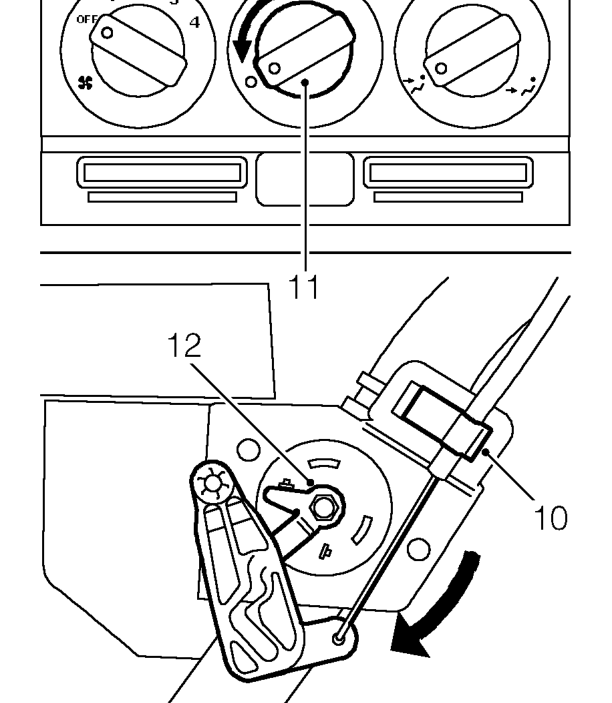

Align cable outers to control unit and tighten clamp screws.
  1. Release clip securing cable outer to heater valve.
  2. Turn temperature control to COLD.
  3. Push heater control valve to the COLD position and secure cable clip.
  4. Refill cooling system. See COOLING SYSTEM, Adjustments.
  5. Position alarm ECU to heater control, fit and tighten nuts to 4 Nm.
  6. Fit evaporator. See AIR CONDITIONING, Repairs.
