Heater - with air conditioning (page 2 of 4)

Make
MG
Model
MGF Factory Workshop Manual
Year
1995–2000
Section
Repairs
Heating & ventilationHeater - with air conditioning · page 2 of 4

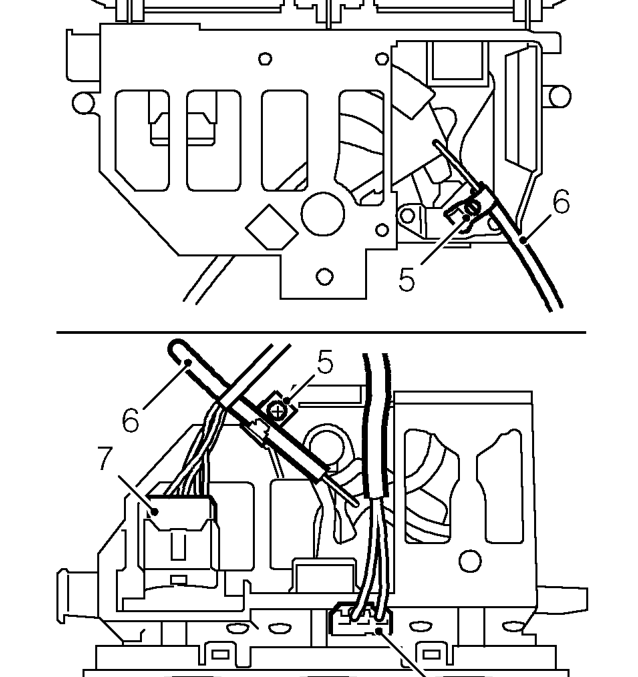

Diagram
  1. Remove 2 screws retaining outer cables to control unit.
  2. Release cables from control unit.
  3. Disconnect 2 multiplugs and remove control unit.
  4. Remove screen duct from heater.
Remove screen duct from heater.

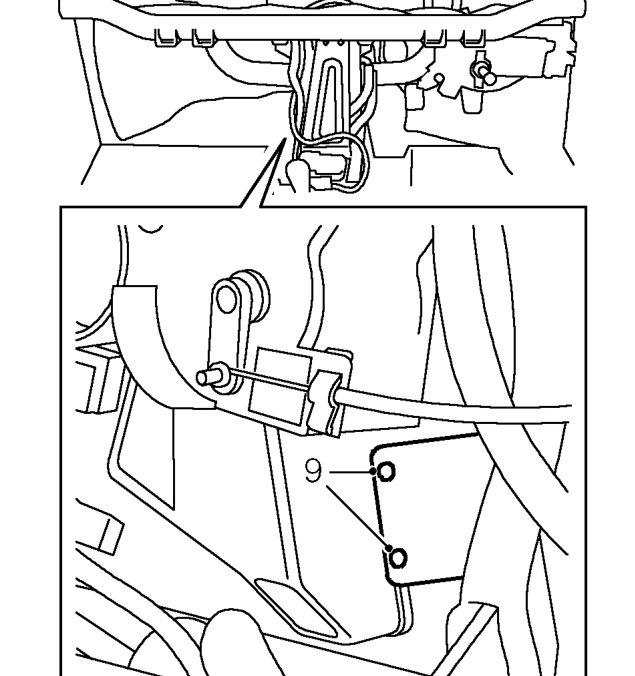

  1. Remove 2 screws securing valve to heater casing.
  2. Position container beneath heater to catch spillage.
