Heating & ventilationFace level vent - centre

FACE LEVEL VENT - CENTRE

Service repair no - 80.15.63

Remove

  1. Remove centre console panel. See BODY, Interior trim components.

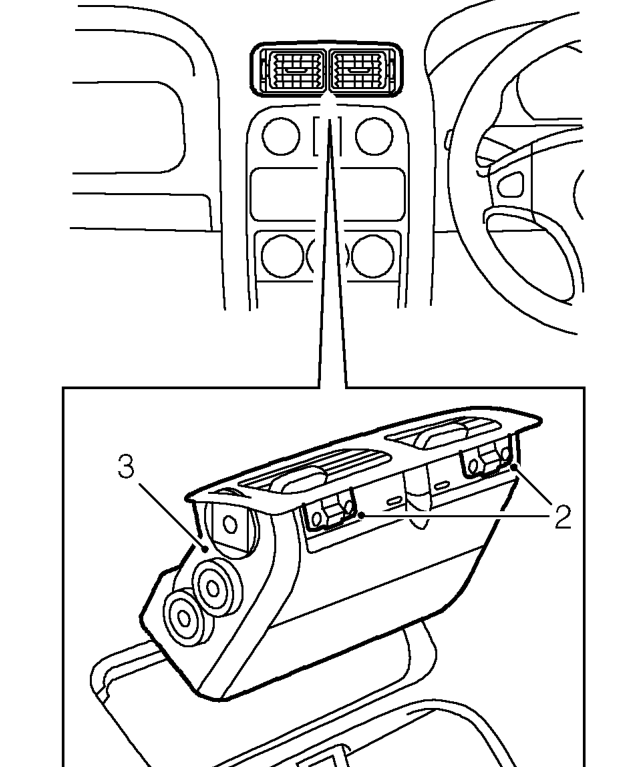

Face level vent - centre – Remove centre console panel. See BODY, Interior trim components.
  1. Release 4 clips securing vent to fascia.
  2. Remove vent.

Refit

  1. Fit vent to fascia and engage clips.
  2. Fit centre console panel. See BODY, Interior trim components.

AIR INTAKE PANEL

Service repair no - 80.15.62

Remove

  1. Remove wiper arms. See WIPERS & WASHERS, Repairs.

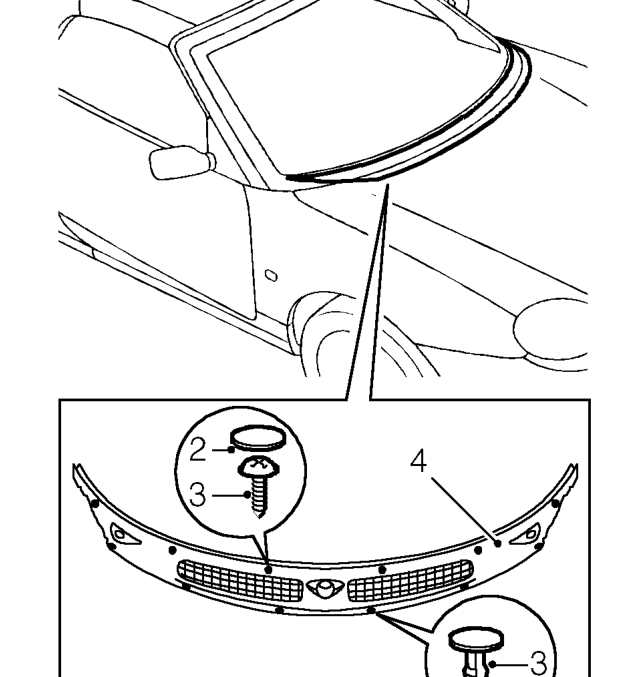

Air intake panel – Remove wiper arms. See WIPERS & WASHERS, Repairs.
  1. Remove 6 retaining screw caps from intake moulding.
  2. Remove 6 screws and 6 clips securing panel to scuttle.
  3. Release intake panel from clips and remove panel.

Refit

  1. Position panel to scuttle and secure with clips and screws.
  2. Fit screw caps.
  3. Fit wiper arms. See WIPERS & WASHERS, Repairs.
