Wipers & washersWasher reservoir

WASHER RESERVOIR

Service repair no - 84.10.01

Remove

  1. Remove reservoir and pump. See this section.

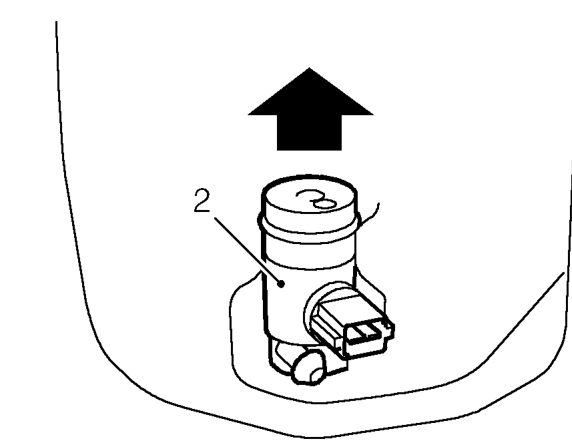

Washer reservoir – Remove reservoir and pump. See this section.
  1. Remove pump from reservoir.

Refit

  1. Fit pump to reservoir.
  2. Fit reservoir and pump assembly. See this section.

RESERVOIR AND PUMP

Service repair no - 84.10.06

Remove

  1. Remove underbonnet closing panel. See BODY, Exterior fittings.
  2. Position container to catch spillage.
  3. Release reservoir from body bracket.

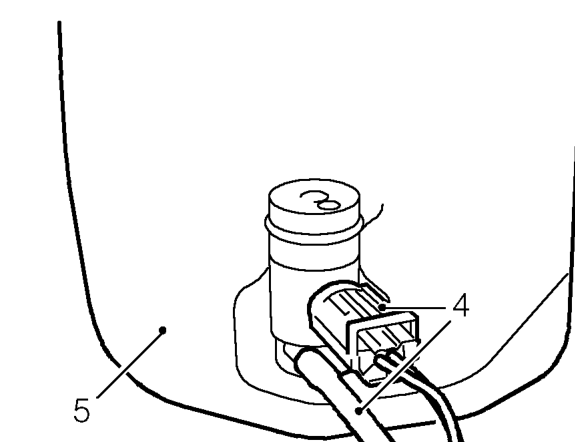

Reservoir and pump – Release reservoir from body bracket.
  1. Disconnect multiplug and washer hose.
  2. Remove reservoir assembly.

Refit

  1. Position reservoir.
  2. Connect multiplug and hose.
  3. Engage reservoir to body.
  4. Fill reservoir with washer fluid.
  5. Fit underbonnet closing panel. See BODY, Exterior fittings.
