MG MGF Factory Workshop Manual (1995-2000)18 · Heating & ventilation
18 · Heating & A/C

Cable - air distribution control - up to 2000my

Make
MG
Model
MGF Factory Workshop Manual
Year
1995–2000
Section
Repairs › Cable - air distribution control - up to 2000my
Heating & ventilationCable - air distribution control - up to 2000my

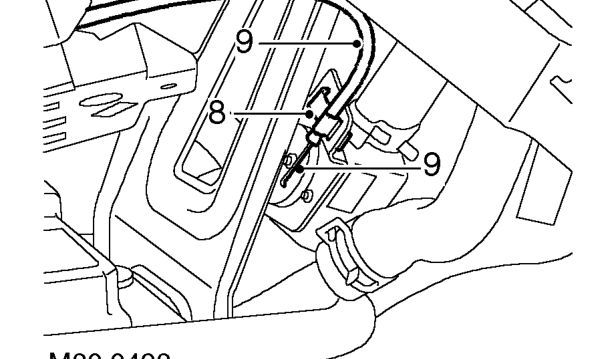

Diagram
  1. Remove clip securing cable outer to heater valve.
  2. Release cable from valve and remove cable.

Refit

  1. Engage cable to heater valve.
  2. Engage cable to heater controls and secure cable clamp.
  3. Turn heater control to ’COLD’ and heater valve lever fully clockwise.
  4. Secure outer cable to valve with clip.
  5. Position controls to fascia and secure with screws.
  6. Position alarm ECU support plate and secure with screws.
  7. Position alarm ECU to heater control unit, fit and tighten nuts to 4 Nm.
  8. Fit front console. See BODY, Interior trim components.

CABLE - AIR DISTRIBUTION CONTROL - UP TO 2000MY

Service repair no - 80.10.12

Remove

  1. Remove front console. See BODY, Interior trim components.

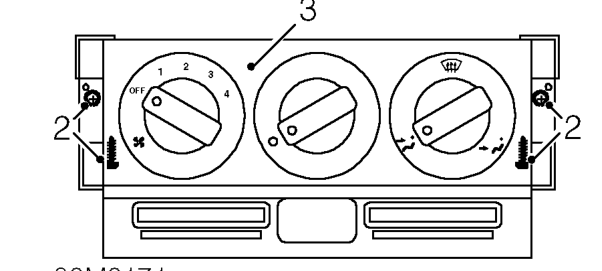

Cable - air distribution control - up to 2000my – Remove front console. See BODY, Interior trim components.
  1. Remove 4 screws securing heater control unit to fascia.
  2. Release control unit from fascia.

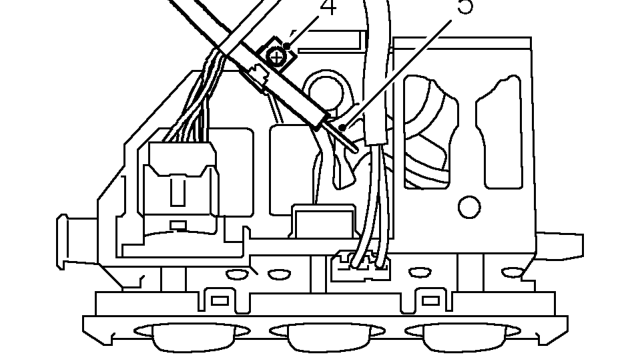

Cable - air distribution control - up to 2000my – Release control unit from fascia.
  1. Remove screw securing cable clamp to control unit and collect clamp.
  2. Release cable from control unit.
