MG MGF Factory Workshop Manual (1995-2000)18 · Heating & ventilation
18 · Heating & A/C

Heater matrix

Make
MG
Model
MGF Factory Workshop Manual
Year
1995–2000
Section
Repairs › Heater matrix
Heating & ventilationHeater matrix · page 1 of 2

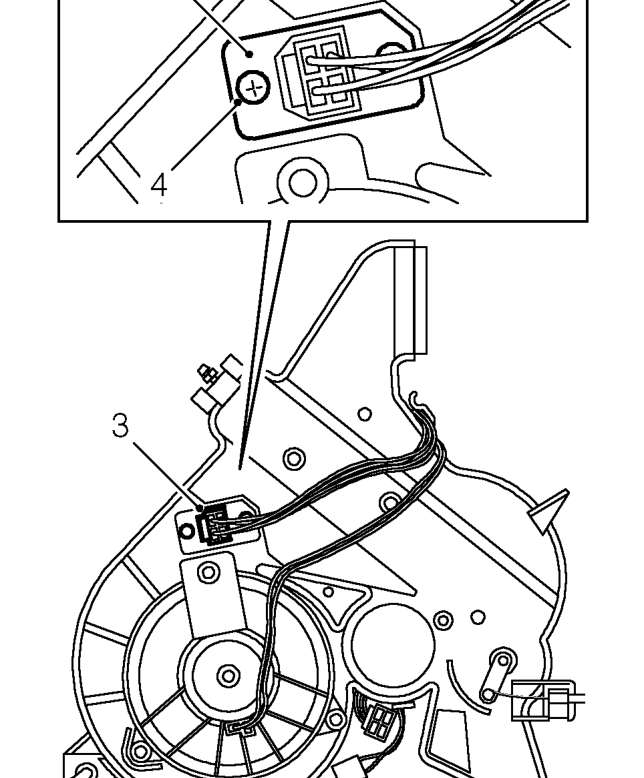

Diagram
  1. Disconnect multiplug from resistor.
  2. Remove 2 screws securing resistor.
  3. Remove heater resistor.

Refit

  1. Position resistor to heater and secure with screws.
  2. Connect resistor multiplug.
  3. Position throttle pedal assembly, fit and tighten nuts to 6 Nm.
  4. Fit and tighten bolt to 22 Nm.

HEATER MATRIX

Service repair no - 80.20.29

Remove

  1. Remove heater. See this section.

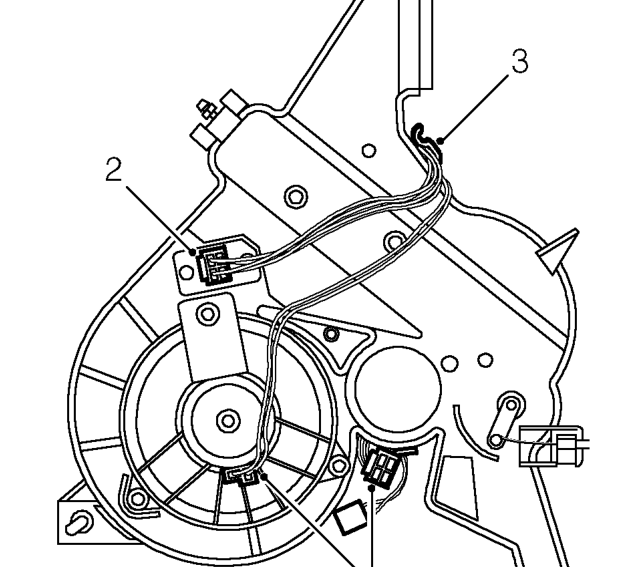

Heater matrix – Remove heater. See this section.
  1. Disconnect multiplugs from blower and resistor.
  2. Release harness from 2 clips and position aside.
