MG MGF Factory Workshop Manual (1995-2000)18 · Heating & ventilation
18 · Heating & A/C

Heater matrix (page 2 of 2)

Make
MG
Model
MGF Factory Workshop Manual
Year
1995–2000
Section
Repairs
Heating & ventilationHeater matrix · page 2 of 2

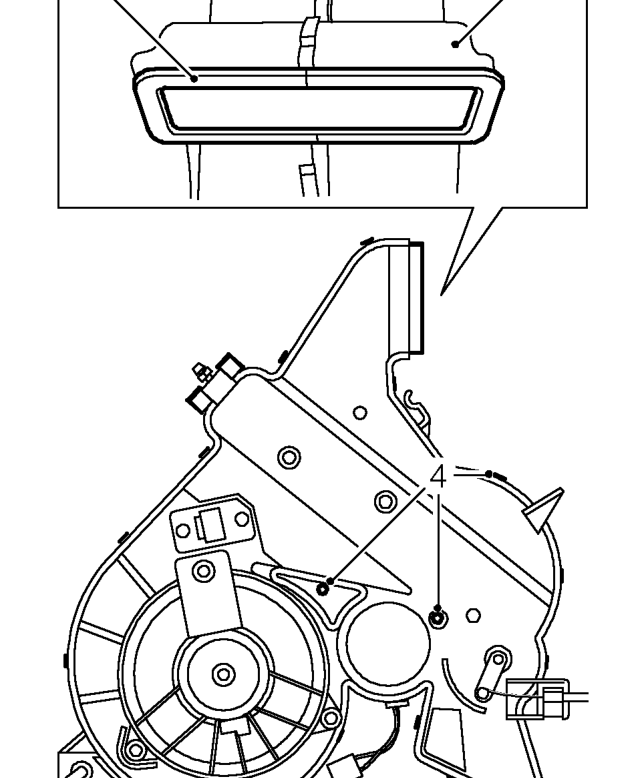

Diagram
  1. Remove 15 clips and 2 screws securing two halves of casing.
  2. Remove foam seal from outlet vent and matrix bleed nipple.
  3. Separate two halves of casing.
  4. Remove heater matrix.

Refit

  1. Position matrix to heater.
  2. Position two halves of casing, ensuring correct location of flow direction flap.
  3. Secure casing halves with clips and screws.
  4. Clean sealing faces.
  5. Fit foam seals to outlet vent and bleed nipple.
  6. Engage harness clips and connect multiplugs.
  7. Fit heater. See this section.
