Heating & ventilationCable - water valve control - 2000my on

CABLE - WATER VALVE CONTROL - 2000MY ON

Service repair no - 80.10.07

Remove

  1. Remove front console. See BODY, Interior trim components.
Cable - water valve control - 2000my on – Remove front console. See BODY, Interior trim components.

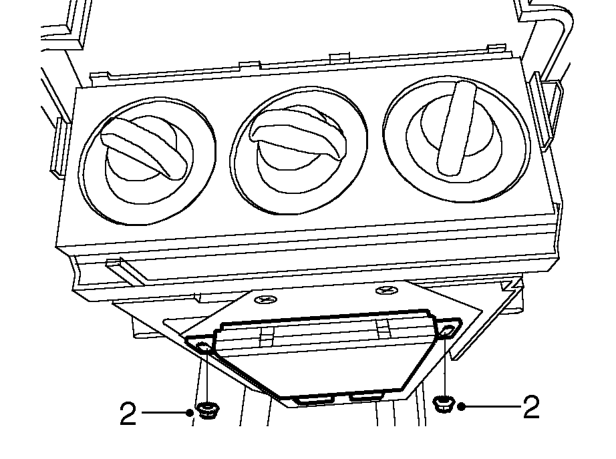

  1. Remove 2 nuts securing alarm ECU to heater control unit and position alarm ECU aside.
Cable - water valve control - 2000my on – Remove 2 nuts securing alarm ECU to heater control unit and position alarm ECU aside.

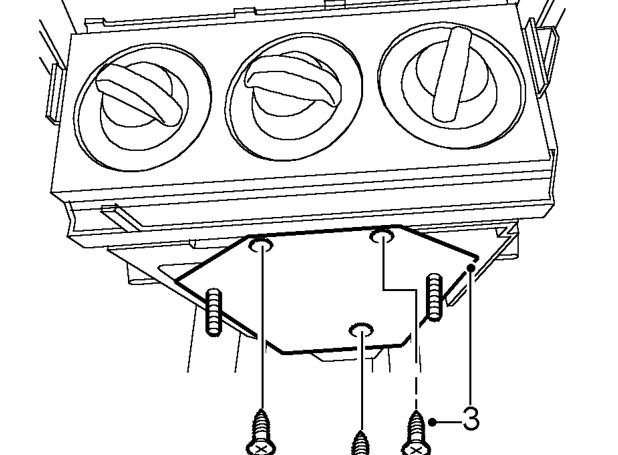

  1. Remove 3 screws securing alarm ECU support plate and remove support plate.
Cable - water valve control - 2000my on – Remove 3 screws securing alarm ECU support plate and remove support plate.

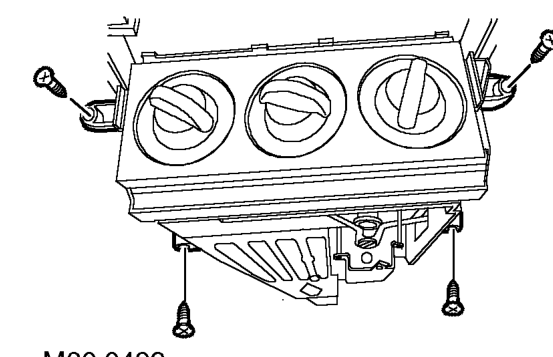

  1. Remove 4 screws securing controls to fascia.
  2. Release controls from fascia.
Cable - water valve control - 2000my on – Release controls from fascia.

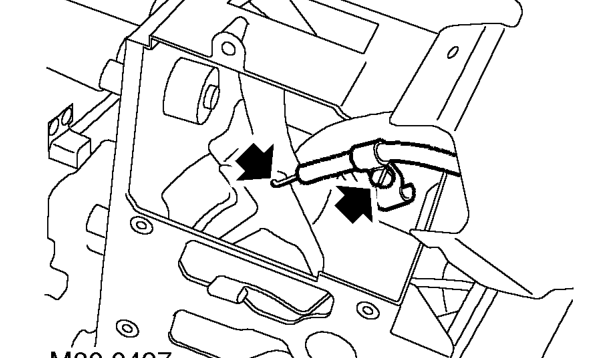

  1. Remove screw securing cable clamp to controls and collect clamp.
  2. Release cable from controls.
