MG MGF Factory Workshop Manual (1995-2000)18 · Heating & ventilation
18 · Heating & A/C

Heater resistor

Make
MG
Model
MGF Factory Workshop Manual
Year
1995–2000
Section
Repairs › Heater resistor
Heating & ventilationHeater resistor

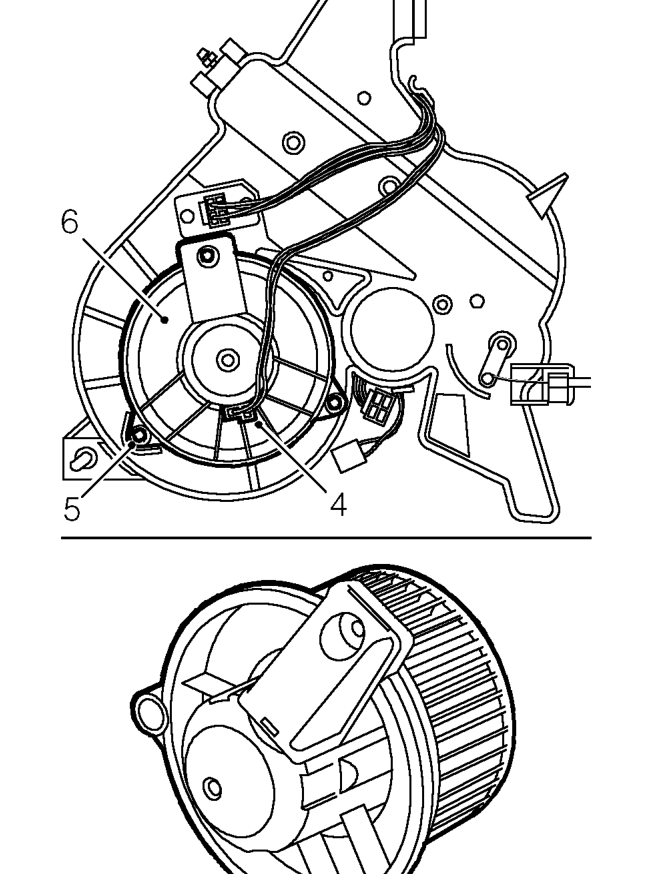

Diagram
  1. Disconnect multiplug from heater blower.
  2. Remove 3 screws securing blower to heater.
  3. Remove heater blower.
  4. Release armature cover and collect sleeve.

Refit

  1. Position screw and sleeve to top location of heater blower.
  2. Position blower to heater and secure with screws.

CAUTION: Ensure screw sleeve does not fall into blower motor.

  1. Connect multiplug to blower.
  2. Fit heater duct.
  3. Position throttle pedal assembly, fit and tighten nuts to 6 Nm.
  4. Fit and tighten bolt to 22 Nm.

HEATER RESISTOR

Service repair no - 80.20.17

Remove

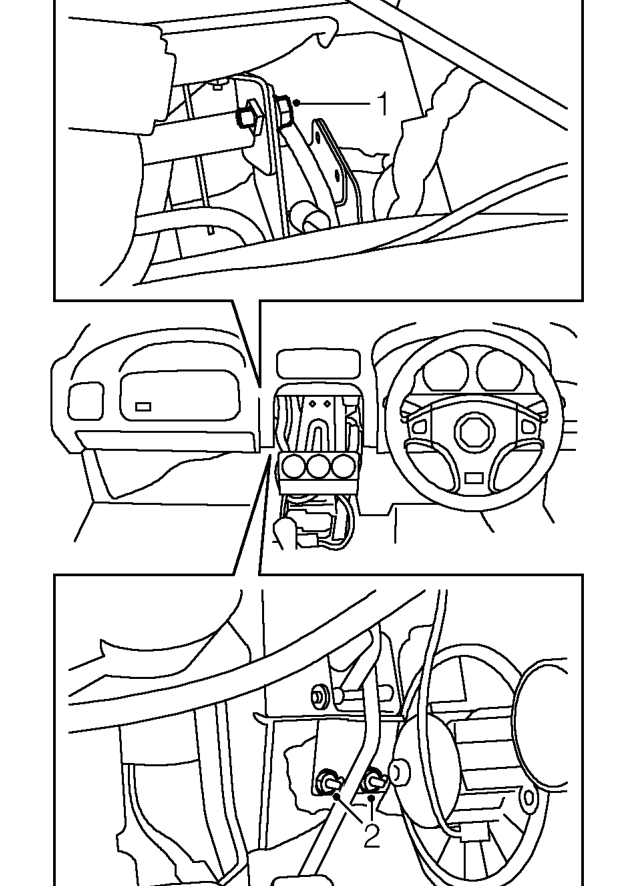

Heater resistor – Service repair no - 80.20.17
  1. Remove bolt securing throttle pedal bracket to pedal box.
  2. Remove 2 nuts securing throttle pedal bracket to bulkhead and position throttle pedal assembly aside.
