Heating & ventilationFace level vent - RH

FACE LEVEL VENT - RH

Service repair no - 80.15.04

Remove

Face level vent - rh – Service repair no - 80.15.04

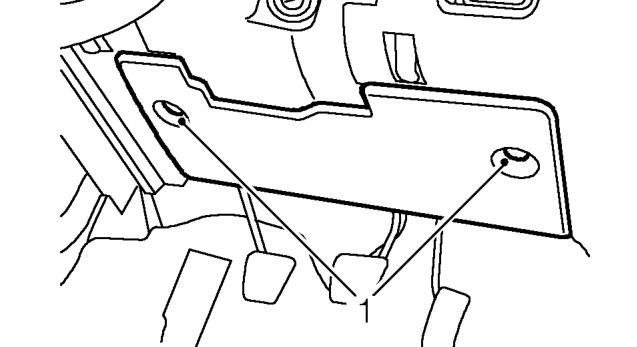

  1. Turn clips securing fuse box cover1/4 turn and open cover.
Face level vent - rh – Turn clips securing fuse box cover1/4 turn and open cover.

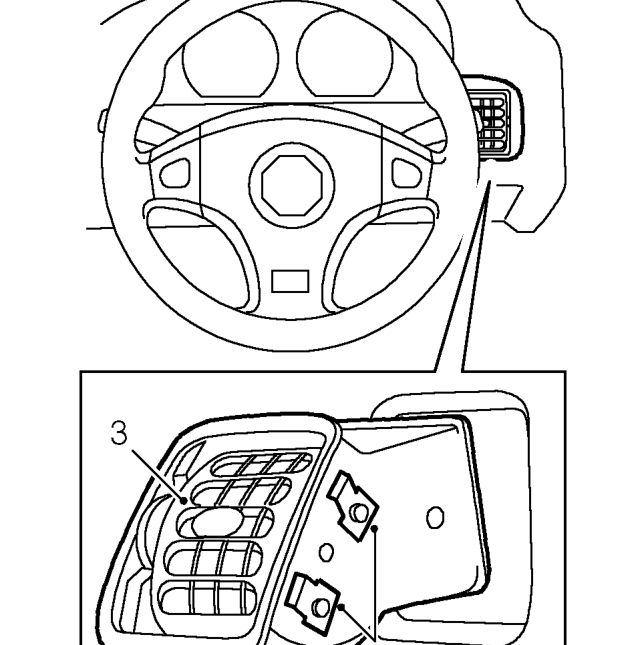

  1. Release 4 clips securing vent to fascia.
  2. Remove vent.

Refit

  1. Fit vent to fascia and engage clips.
  2. Close fuse box cover and secure with clips.

FACE LEVEL VENT - LH

Service repair no - 80.15.05

Remove

  1. Remove glovebox. See BODY, Interior trim components.
Face level vent - lh – Remove glovebox. See BODY, Interior trim components.

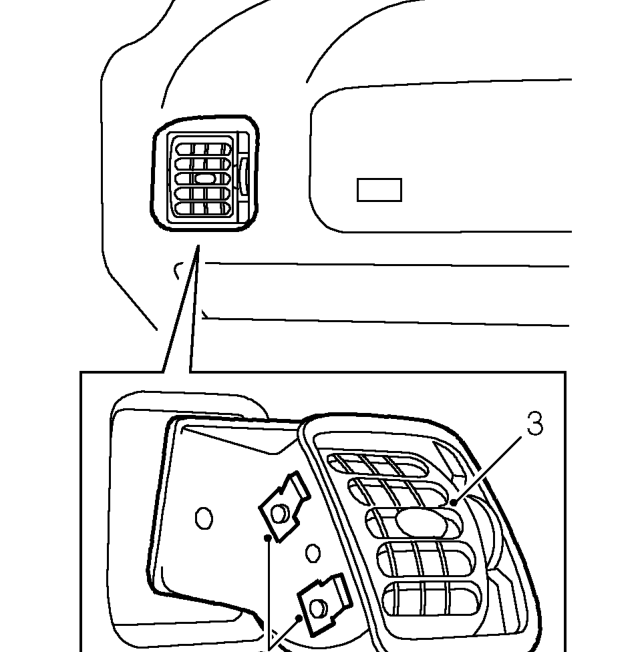

  1. Release 4 clips securing vent to fascia.
  2. Remove vent.

Refit

  1. Fit vent to fascia and engage clips.
  2. Fit glovebox. See BODY, Interior trim components.
