Heating & ventilationHeater - with air conditioning · page 1 of 4

Refit

  1. Position heater to mountings.
  2. Tighten all fixings to 10 Nm.
  3. Position intake duct and tighten nut to 10 Nm.
  4. Connect multiplug to heater blower.
  5. Connect hoses to heater matrix and secure with clips.
  6. Position valve and secure with screws.
  7. Fit screen ducts.
  8. Connect multiplugs to control unit.
  9. Position control cables and connect to control unit.
  10. Align cable outers to control unit and tighten clamp screws.

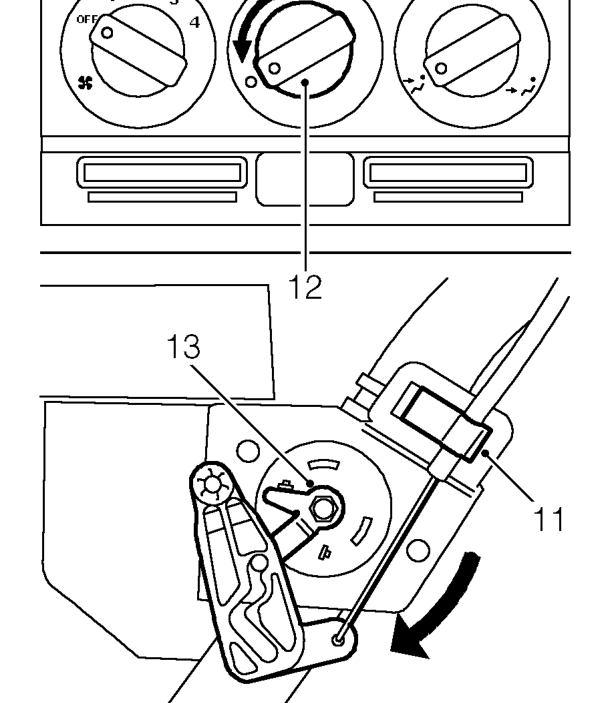

Align cable outers to control unit and tighten clamp screws.
  1. Release clip securing cable outer to heater valve.
  2. Turn temperature control to COLD.
  3. Push heater control valve to the cold position and secure cable clip.
  4. Position alarm ECU to control unit, fit and tighten nuts to 4 Nm.
  5. Refill cooling system. See COOLING SYSTEM, Adjustments.
  6. Fit fascia. See BODY, Interior trim components.

HEATER - WITH AIR CONDITIONING

Service repair no - 80.20.01/20

WARNING: See RESTRAINT SYSTEMS, Precautions.

Remove

  1. Make the SRS system safe See RESTRAINT SYSTEMS, Precautions.
  2. Remove evaporator. See AIR CONDITIONING, Repairs.

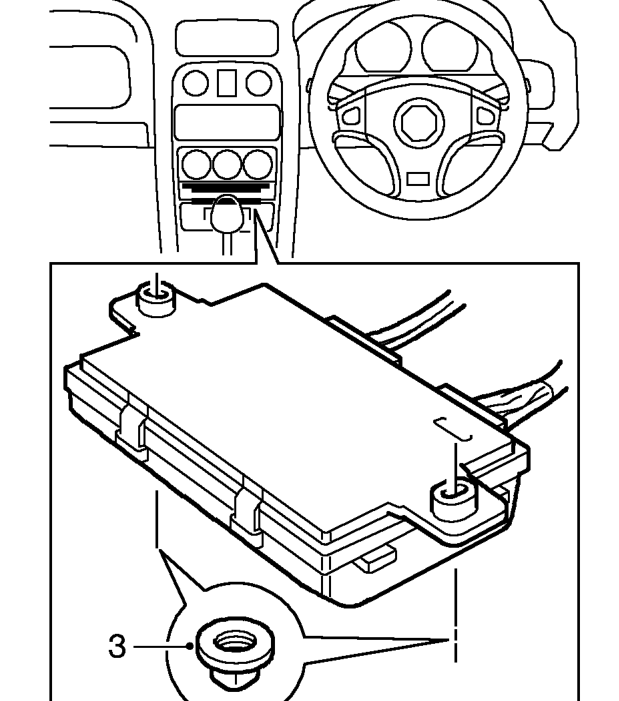

Heater - with air conditioning – Remove evaporator. See AIR CONDITIONING, Repairs.
  1. Remove 2 nuts securing anti-theft alarm ECU to heater control, position ECU aside.
  2. Drain cooling system. See COOLING SYSTEM, Adjustments.
