MG MGF Factory Workshop Manual (1995-2000)18 · Heating & ventilation
18 · Heating & A/C

Heater (page 3 of 3)

Make
MG
Model
MGF Factory Workshop Manual
Year
1995–2000
Section
Repairs
Heating & ventilationHeater · page 3 of 3
Diagram

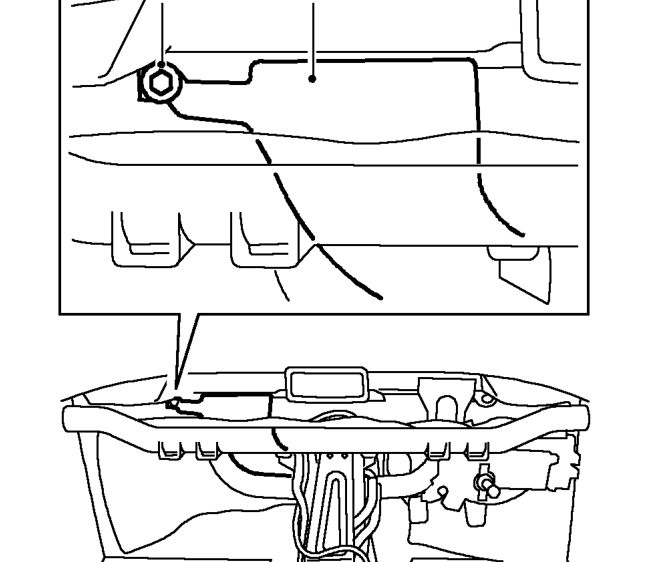

  1. Remove nut securing intake duct to body.
  2. Remove intake duct.
Remove intake duct.

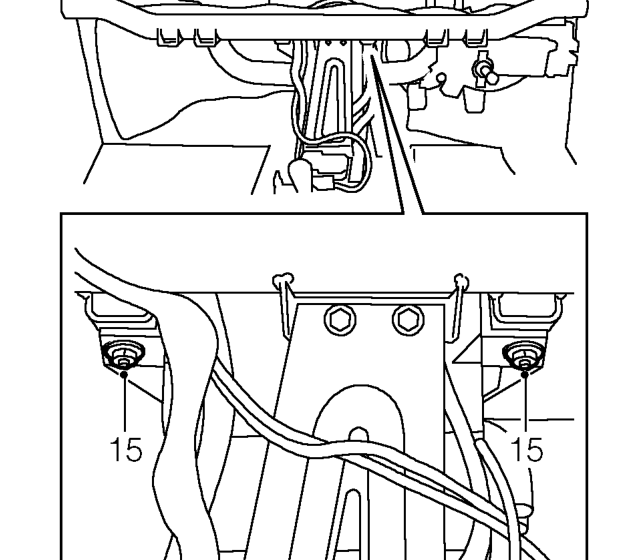

  1. Remove 2 nuts securing heater unit to crossmember.
Remove 2 nuts securing heater unit to crossmember.

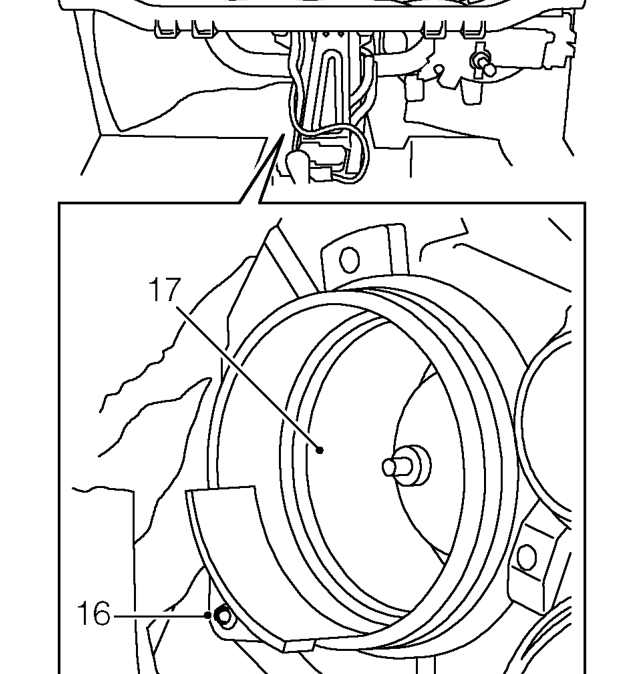

  1. Remove bolt securing heater unit to bulkhead.
  2. Remove heater unit.
