MG MGF Factory Workshop Manual (1995-2000)18 · Heating & ventilation
18 · Heating & A/C

Cable - air distribution control - 2000my on

Make
MG
Model
MGF Factory Workshop Manual
Year
1995–2000
Section
Repairs › Cable - air distribution control - 2000my on
Heating & ventilationCable - air distribution control - 2000my on

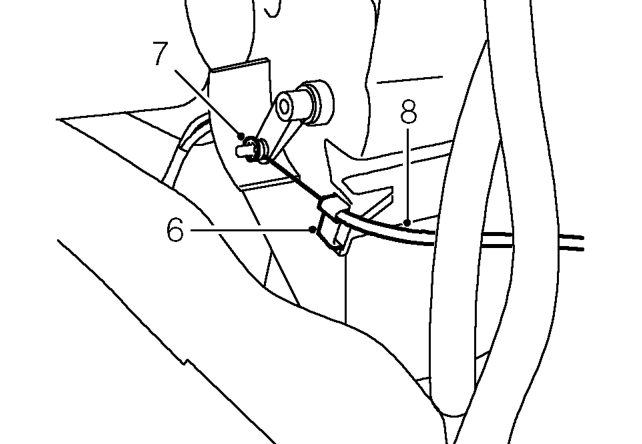

Diagram
  1. Remove clip securing cable outer to heater.
  2. Remove star washer securing cable to air distribution control lever.
  3. Remove cable from heater.

Refit

  1. Position cable to air distribution control lever and secure with star washer.
  2. Engage cable to control unit.
  3. Align collar of outer cable to control unit abutment and secure with clamp.
  4. Turn distribution control fully anti-clockwise to face vent position.
  5. Position air distribution lever fully forward.
  6. Align outer cable to abutment and secure with clip.
  7. Position controls to fascia and secure with screws.
  8. Fit front console. See BODY, Interior trim components.

CABLE - AIR DISTRIBUTION CONTROL - 2000MY ON

Service repair no - 80.10.12

Remove

  1. Remove front console. See BODY, Interior trim components.
Cable - air distribution control - 2000my on – Remove front console. See BODY, Interior trim components.

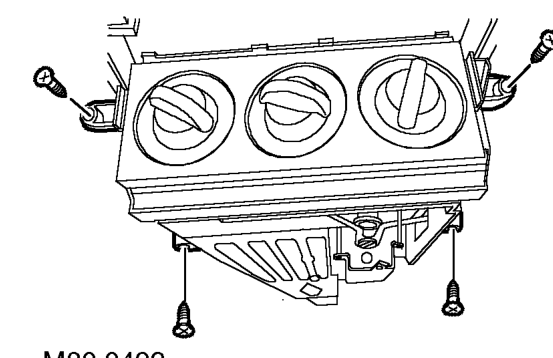

  1. Remove 4 screws securing controls to fascia.
  2. Release controls from fascia.
Cable - air distribution control - 2000my on – Release controls from fascia.

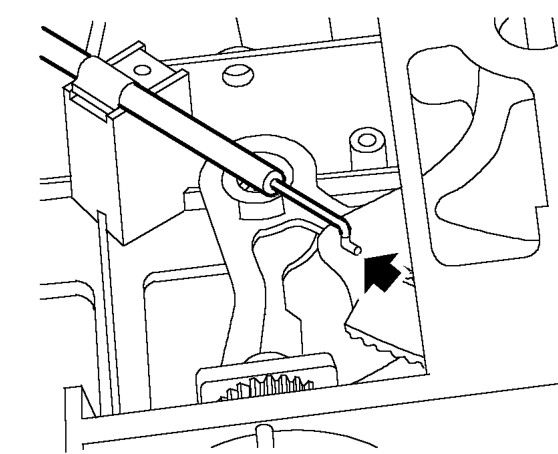

  1. Remove screw securing cable clamp to controls and collect clamp.
  2. Release cable from controls.
