MG MGF Factory Workshop Manual (1995-2000)18 · Heating & ventilation
18 · Heating & A/C

Heater valve

Make
MG
Model
MGF Factory Workshop Manual
Year
1995–2000
Section
Repairs › Heater valve
Heating & ventilationHeater valve · page 1 of 2

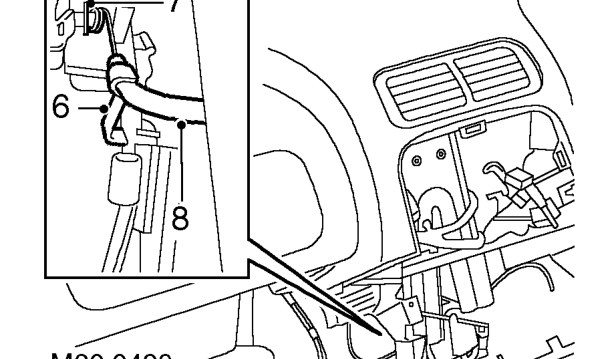

Diagram
  1. Remove clip securing cable outer to heater.
  2. Remove star washer securing cable to air distribution control lever.
  3. Remove cable from heater.

Refit

  1. Position cable to air distribution control lever and secure with star washer.
  2. Engage cable to heater controls.
  3. Align collar of outer cable to heater control abutment and secure with clamp.
  4. Turn distribution control fully anti-clockwise to face vent position.
  5. Position air distribution lever fully forward.
  6. Align outer cable to abutment and secure with clip.
  7. Position controls to fascia and secure with screws.
  8. Fit front console. See BODY, Interior trim components.

HEATER VALVE

Service repair no - 80.10.16

Remove

  1. Drain coolant system. See COOLING SYSTEM, Adjustments.
  2. Remove both console closing panels. See BODY, Interior trim components.

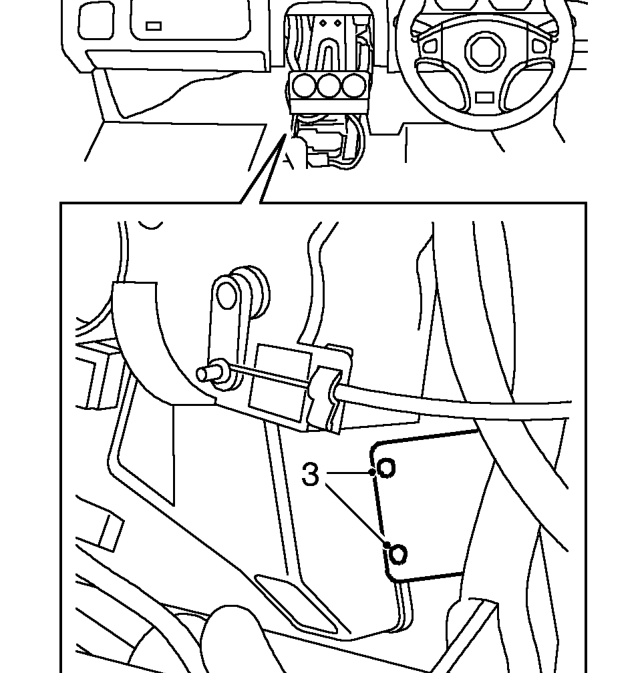

Heater valve – Remove both console closing panels. See BODY, Interior trim components.
  1. Remove 2 screws securing valve to heater assembly.
