Heater valve (page 2 of 2)

Make
MG
Model
MGF Factory Workshop Manual
Year
1995–2000
Section
Repairs
Heating & ventilationHeater valve · page 2 of 2

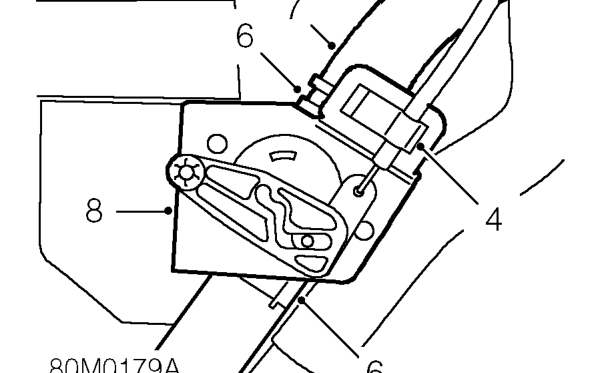

Diagram
  1. Remove clip securing cable outer to valve and release cable from valve lever.
  2. Position cloth and container to catch spillage.
  3. Release 2 clips securing hoses to valve.
  4. Release top hose.
  5. Remove valve from bottom hose.

Refit

  1. Fit valve to lower hose and secure with clip.
  2. Position upper hose to valve and secure with clip.
  3. Engage cable to valve lever.
  4. Position valve to heater assembly and secure with screws.

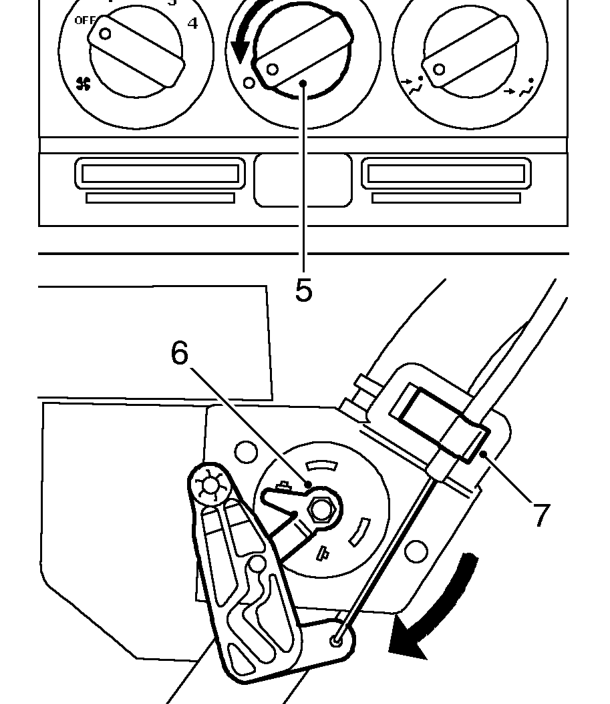

Position valve to heater assembly and secure with screws.
  1. Turn heater control fully to ’COLD’.
  2. Turn valve lever fully clockwise.
  3. Position cable outer and secure with clip.
  4. Fit console closing panels. See BODY, Interior trim components.
  5. Refill coolant system. See COOLING SYSTEM, Adjustments.
