MG MGF Factory Workshop Manual (1995-2000)18 · Heating & ventilation
18 · Heating & A/C

Heater - with air conditioning (page 3 of 4)

Make
MG
Model
MGF Factory Workshop Manual
Year
1995–2000
Section
Repairs
Heating & ventilationHeater - with air conditioning · page 3 of 4
Diagram

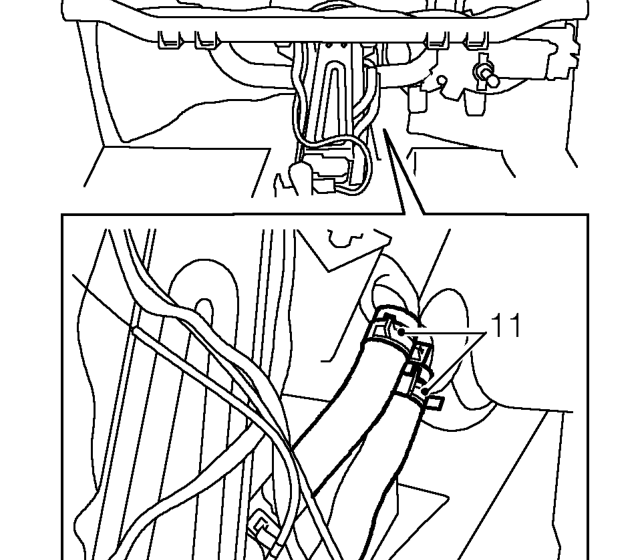

  1. Release clips and disconnect both hoses from heater matrix. Allow matrix to drain.
Release clips and disconnect both hoses from heater matrix. Allow matrix to drain.

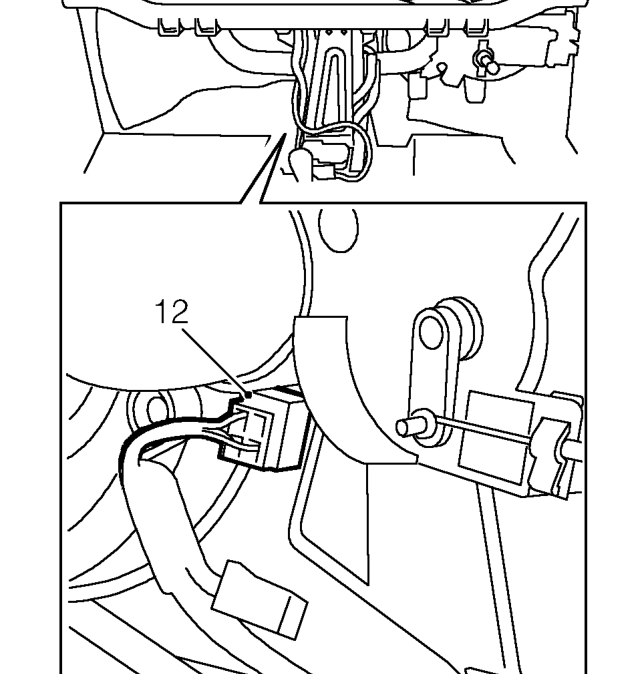

  1. Disconnect multiplug from heater blower.
Disconnect multiplug from heater blower.

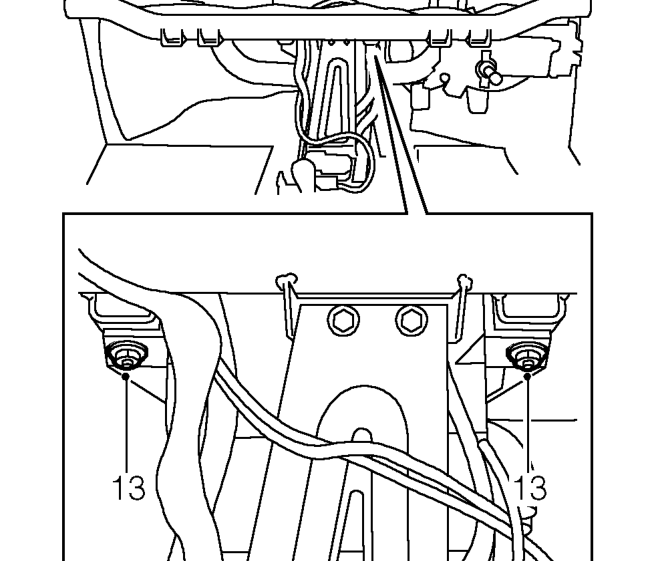

  1. Remove 2 nuts securing heater unit to crossmember.
