MG MGF Factory Workshop Manual (1995-2000)18 · Heating & ventilation
18 · Heating & A/C

Controls - heater - 2000my on (page 2 of 2)

Make
MG
Model
MGF Factory Workshop Manual
Year
1995–2000
Section
Repairs
Heating & ventilationControls - heater - 2000my on · page 2 of 2

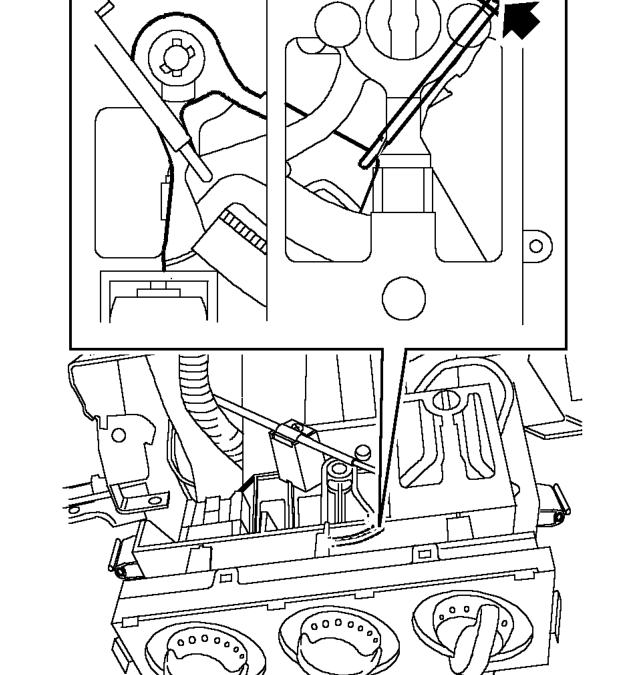

Diagram

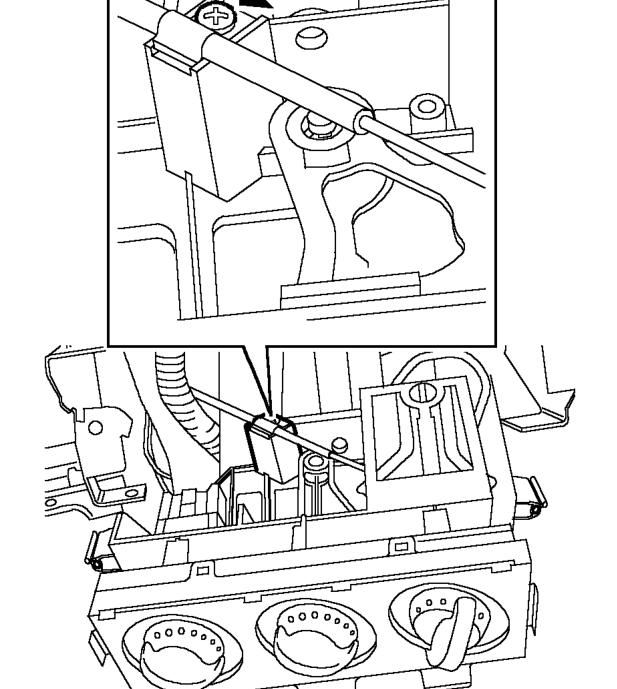

  1. Loosen screw securing temperature control outer cable and release inner cable from control lever.
Loosen screw securing temperature control outer cable and release inner cable from control

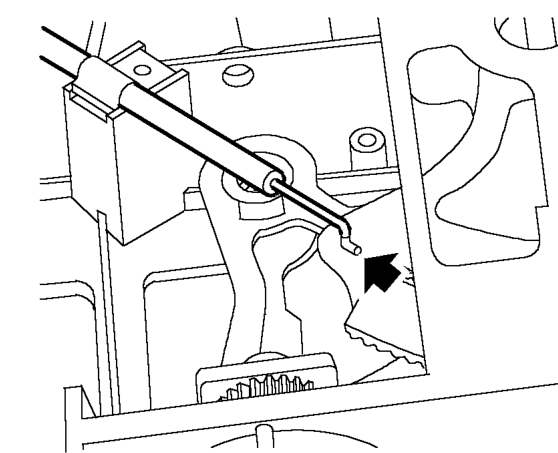

  1. Loosen screw securing distribution cable control outer cable.
Loosen screw securing distribution cable control outer cable.
  1. Release inner cable from control lever.
  2. Remove control assembly.
